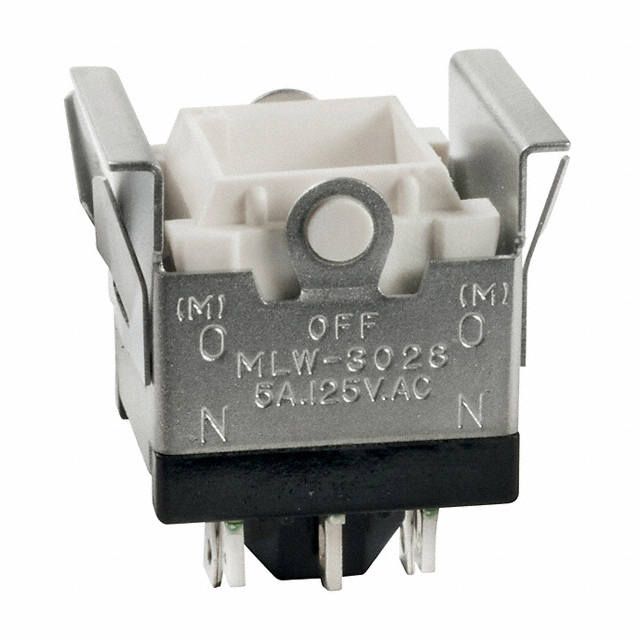

SWITCH ROCKER DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MLW3028/U

Obsolete

NKK Switches

SWITCH ROCKER DPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MLW3028/U

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	UL
Circuit	DPDT
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	18.7 mm
Panel Cutout Dimensions [y]	16.7 mm
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V

MLW3028 Series

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Electrical Life	Mounting Type	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Actuator Marking	Current Rating (Amps)	Color - Actuator/Cap	Mechanical Life	Switch Function	Circuit	Features	Approval Agency	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Illumination Type, Color	Panel Cutout Dimensions	Panel Cutout Dimensions [custom]
NKK Switches MLW3028-00-DC-1A	-10 °C	50 °C	10000 Cycles	Panel Mount Snap-In	30 V	125 V	Concave (Curved)	No Marking	3 A 5 A	Red	30000 Steps	Mom-Off-Mom	DPDT	Epoxy Sealed Terminals	UL	Solder Lug	18.7 mm	16.7 mm
NKK Switches MLW3028/U	-10 °C	50 °C	10000 Cycles	Panel Mount Snap-In		125 V	Actuator Arm Cap Required	Varies by Cap	5 A		30000 Steps	Mom-Off-Mom	DPDT	Epoxy Sealed Terminals	UL	Solder Lug	18.7 mm	16.7 mm
NKK Switches MLW3028-00-RA-1G	-10 °C	50 °C	10000 Cycles	Panel Mount Snap-In	30 V	125 V	Concave (Curved)	No Marking	3 A 5 A	Black	30000 Steps	Mom-Off-Mom	DPDT	Epoxy Sealed Terminals	UL	Solder Lug	18.7 mm	16.7 mm
NKK Switches MLW3028-C-LB-1A	-10 °C	50 °C	10000 Cycles	Panel Mount Snap-In	30 V	125 V	Concave (Curved) - Illuminated	No Marking	3 A 5 A	White	30000 Steps	Mom-Off-Mom	DPDT	Epoxy Sealed Terminals	UL	Solder Lug	18.7 mm	16.7 mm	1.85 VDC	LED Red
NKK Switches MLW3028-00-PG-2A	-10 °C	50 °C	10000 Cycles	Panel Mount Snap-In	30 V	125 V	Paddle	No Marking	3 A 5 A	Blue	30000 Steps	Mom-Off-Mom	DPDT	Epoxy Sealed Terminals	UL	Solder Lug					19.2 mm²
NKK Switches MLW3028-00-RB-2A
NKK Switches MLW3028-06-RD-2A	-10 °C	50 °C	10000 Cycles	Panel Mount Snap-In	30 V	125 V	Concave (Curved) - Illuminated	No Marking	3 A 5 A	Orange	30000 Steps	Mom-Off-Mom	DPDT	Epoxy Sealed Terminals	UL	Solder Lug			6 VAC/DC	Incandescent Orange		19.2 mm˛
NKK Switches MLW3028-12-DC-1A	-10 °C	50 °C	10000 Cycles	Panel Mount Snap-In	30 V	125 V	Concave (Curved) - Illuminated	No Marking	3 A 5 A	Red	30000 Steps	Mom-Off-Mom	DPDT	Epoxy Sealed Terminals	UL	Solder Lug	18.7 mm	16.7 mm	12 VAC	Incandescent Red
NKK Switches MLW3028/CUL	-10 °C	50 °C	10000 Cycles	Panel Mount Snap-In		125 V	Actuator Arm Cap Required	Varies by Cap	5 A		30000 Steps	Mom-Off-Mom	DPDT	Epoxy Sealed Terminals	UL	Solder Lug	18.7 mm	16.7 mm
