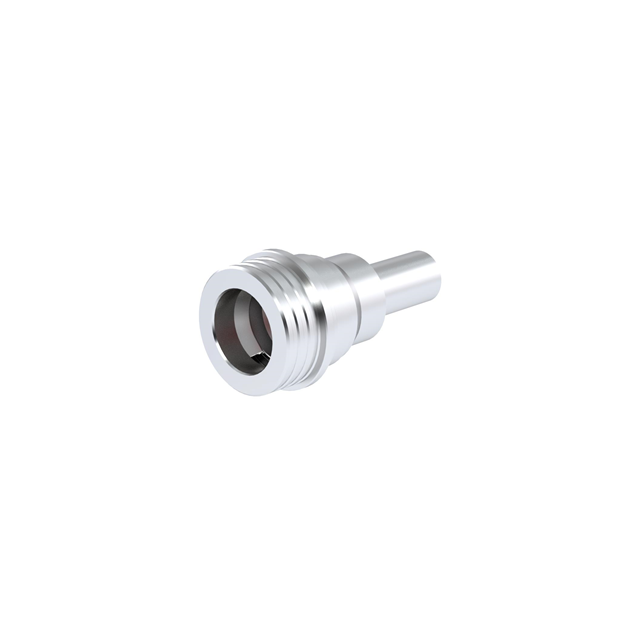

R164075010

Active

Radiall USA, Inc.

QN / STRAIGHT PLUG FULL CRIMP TY

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QN / STRAIGHT PLUG FULL CRIMP TY

Technical Specifications

Parameters and characteristics for this part

Specification	R164075010

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-240
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	QN
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Ingress Protection	Center Contact Material	Body Material	Housing Color	Fastening Type	Connector Style	Frequency - Max [Max]	Body Finish	Number of Ports	Dielectric Material	Cable Group	Connector Type	Center Contact Plating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type	Shield Termination	Impedance
Radiall USA, Inc. R164075010	IP68 - Dust Tight Waterproof	Brass	Brass	Silver	Snap-On	QN	6000 MHz	White Bronze	1	Polytetrafluoroethylene (PTFE)	LMR-240	Male Pin Plug	Silver	500 V	-55 °C	125 °C	Crimp	Free Hanging (In-Line)	Crimp	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 21.21

General part information

QN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
