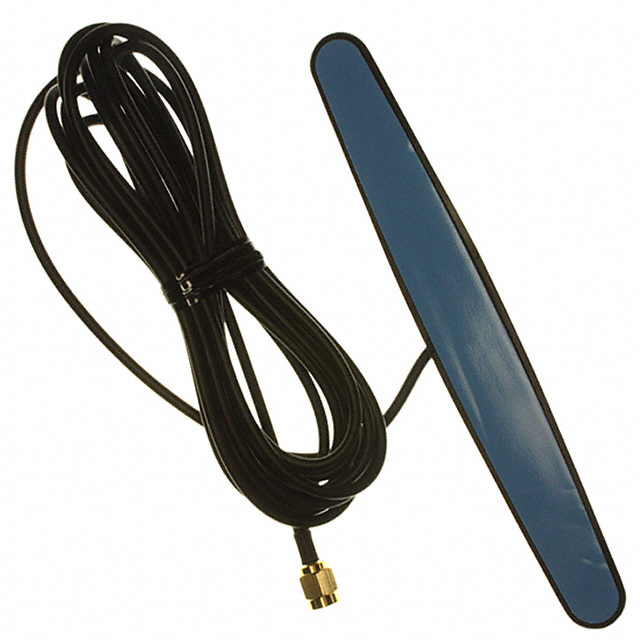

W601DT-110-AM-AGDP

Active

Nearson Inc.

RF ANT 892MHZ/1.9GHZ FLAT BAR

Search across all available documentation for this part.

Active

Nearson Inc.

RF ANT 892MHZ/1.9GHZ FLAT BAR

Technical Specifications

Parameters and characteristics commom to parts in this series

LOW PROFILE 3G ANTENNA WITH FLYI

Part	Applications	Antenna Type	Number of Bands	Frequency Range [Min]	Frequency Range [Max]	Mounting Type	RF Family/Standard	Height (Max) [Max]	Height (Max) [Max]	Frequency (Center/Band)	VSWR	Gain
Nearson Inc. W601DT-110-AM-AGDPU	AMPS, DCS, GSM, PCS, UMTS	Flat Bar	2	1.71 GHz, 824 MHz	2.17 GHz, 960 MHz	Adhesive	Cellular, General ISM	13 mm	0.512 in	1.94 GHz, 892 MHz	2	2 dBic
Nearson Inc. W601DT-110-AM-AGDP		Flat Bar	2	1.71 GHz, 824 MHz	1.99 GHz, 960 MHz	Adhesive		13.1 mm	0.516 in	1.9 GHz, 892 MHz	2	2 dBic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Flat Bar SMA Male Adhesive

Technical documentation and resources

No documents available
