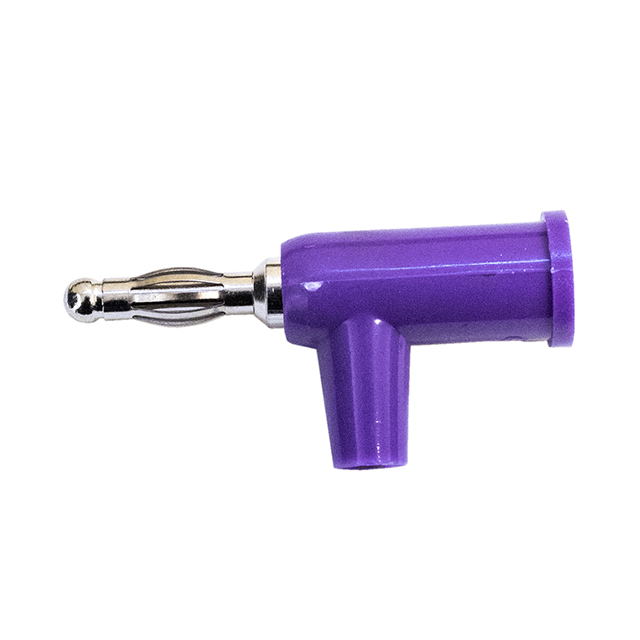

Specification	BU-P1825-7

Body Material	PP, Polypropylene
Color	Violet
Contact Finish	Nickel
Contact Material	Beryllium Copper
Features	Safety Collar, Set Screw
Gender	Male
Insulation	Non-Mating End Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature	50 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Solderless
Type	Banana Plug, Stackable
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	18 AWG

BU-P1825 Series

Part	Contact Finish	Contact Material	Operating Temperature	Body Material	Gender	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Insulation	Plug/Mating Plug Diameter	Color	Features	Termination	Type	Mounting Type
Mueller Electric Co BU-P1825-1	Nickel	Beryllium Copper	50 °C	Polypropylene PP	Male	18 AWG	22 AWG	Non-Mating End Insulated	Standard Banana	Brown	Safety Collar Set Screw	Solderless	Banana Plug Stackable	Free Hanging (In-Line)
Mueller Electric Co BU-P1825-6	Nickel	Beryllium Copper	50 °C	Polypropylene PP	Male	18 AWG	22 AWG	Non-Mating End Insulated	Standard Banana	Blue	Safety Collar Set Screw	Solderless	Banana Plug Stackable	Free Hanging (In-Line)
Mueller Electric Co BU-P1825-2	Nickel	Beryllium Copper	50 °C	Polypropylene PP	Male	18 AWG	22 AWG	Non-Mating End Insulated	Standard Banana	Red	Safety Collar Set Screw	Solderless	Banana Plug Stackable	Free Hanging (In-Line)
Mueller Electric Co BU-P1825-4	Nickel	Beryllium Copper	50 °C	Polypropylene PP	Male	18 AWG	22 AWG	Non-Mating End Insulated	Standard Banana	Yellow	Safety Collar Set Screw	Solderless	Banana Plug Stackable	Free Hanging (In-Line)
Mueller Electric Co BU-P1825-5	Nickel	Beryllium Copper	50 °C	Polypropylene PP	Male	18 AWG	22 AWG	Non-Mating End Insulated	Standard Banana	Green	Safety Collar Set Screw	Solderless	Banana Plug Stackable	Free Hanging (In-Line)
Mueller Electric Co BU-P1825-0	Nickel	Beryllium Copper	50 °C	Polypropylene PP	Male	18 AWG	22 AWG	Non-Mating End Insulated	Standard Banana	Black	Safety Collar Set Screw	Solderless	Banana Plug Stackable	Free Hanging (In-Line)
Mueller Electric Co BU-P1825-7	Nickel	Beryllium Copper	50 °C	Polypropylene PP	Male	18 AWG	22 AWG	Non-Mating End Insulated	Standard Banana	Violet	Safety Collar Set Screw	Solderless	Banana Plug Stackable	Free Hanging (In-Line)
Mueller Electric Co BU-P1825-3	Nickel	Beryllium Copper	50 °C	Polypropylene PP	Male	18 AWG	22 AWG	Non-Mating End Insulated	Standard Banana	Orange	Safety Collar Set Screw	Solderless	Banana Plug Stackable	Free Hanging (In-Line)
Mueller Electric Co BU-P1825-9	Nickel	Beryllium Copper	50 °C	Polypropylene PP	Male	18 AWG	22 AWG	Non-Mating End Insulated	Standard Banana	White	Safety Collar Set Screw	Solderless	Banana Plug Stackable	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

BU-P1825-7 | Datasheet
