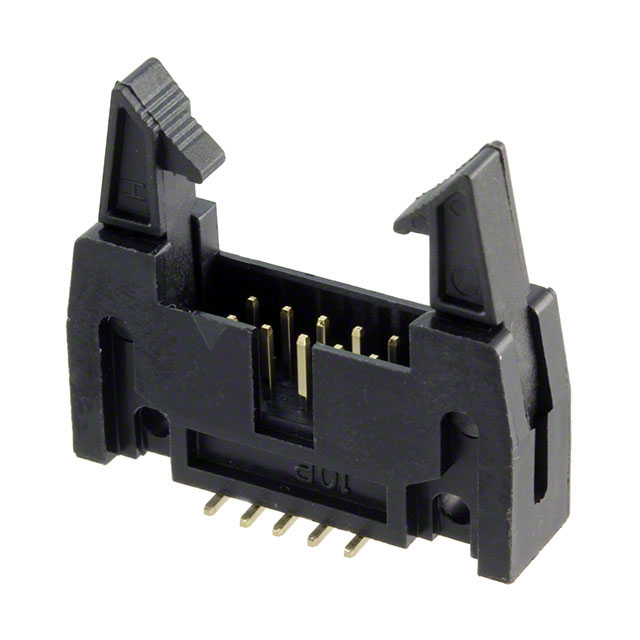

3010-10-003-13-00
ActiveCnC Tech, LLC
CONN HEADER SMD 10POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
3010-10-003-13-00
ActiveCnC Tech, LLC
CONN HEADER SMD 10POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3010-10-003-13-00 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Lock/Eject Hooks, Long |
| Features | Keying Slot |
| Insulation Height [z] | 17 mm |
| Insulation Height [z] | 0.669 " |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
3010-10 Series
| Part | Mounting Type | Number of Positions Loaded | Fastening Type | Style | Insulation Height | Insulation Height | Connector Type | Shrouding | Features | Pitch - Mating | Pitch - Mating | Number of Rows | Contact Material | Voltage Rating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Current Rating (Amps) | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Type | Termination | Insulation Material | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness | Contact Finish | Cable Termination | Row Spacing [x] | Row Spacing | Pitch [x] | Pitch [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | Through Hole Right Angle | All | Latch Lock/Eject Hooks Long | Board to Cable/Wire | 0.327 " | 8.3 mm | Header | Shrouded - 4 Wall | Keying Slot | 0.1 in | 2.54 mm | 2 | Brass | 250 VAC | 2.54 mm | 0.1 in | 3 A | Square | 0.134 in | 3.4 mm | 10 | Gold | -40 °C | 105 ░C | UL94 V-0 | Flash | Male Pin | Solder | Polybutylene Terephthalate (PBT) | |||||||||||
CnC Tech, LLC | Surface Mount | All | Latch Lock/Eject Hooks Short | Board to Cable/Wire | Header | Shrouded - 4 Wall | Keying Slot | 0.1 in | 2.54 mm | 2 | Brass | 250 VAC | 2.54 mm | 0.1 in | 3 A | Square | 10 | Gold | -40 °C | 105 ░C | UL94 V-0 | Flash | Male Pin | Solder | Nylon 9T Polyamide (PA9T) | 17 mm | 0.669 " | |||||||||||||
CnC Tech, LLC | Through Hole Right Angle | All | Push-Pull | Board to Cable/Wire | 0.323 in | 8.2 mm | Header | Shrouded - 4 Wall | Keying Slot | 0.1 in | 2.54 mm | 2 | Brass | 2.54 mm | 0.1 in | Square | 0.134 in | 3.4 mm | 10 | Gold | -40 °C | 105 ░C | UL94 V-0 | Flash | Male Pin | Solder | Polybutylene Terephthalate (PBT) | |||||||||||||
CnC Tech, LLC | Through Hole | All | Push-Pull | Board to Cable/Wire | Header | Shrouded - 4 Wall | Keying Slot | 0.1 in | 2.54 mm | 2 | Brass | 2.54 mm | 0.1 in | Square | 0.134 in | 3.4 mm | 10 | Gold | -40 °C | 105 ░C | UL94 V-0 | Flash | Male Pin | Solder | Polybutylene Terephthalate (PBT) | 17 mm | 0.669 " | |||||||||||||
CnC Tech, LLC | Through Hole | All | Latch Lock/Eject Hooks Long | Board to Cable/Wire | Header | Shrouded - 4 Wall | Keying Slot | 0.1 in | 2.54 mm | 2 | Brass | 250 VAC | 2.54 mm | 0.1 in | 3 A | Square | 0.134 in | 3.4 mm | 10 | Gold | -40 °C | 105 ░C | UL94 V-0 | Flash | Male Pin | Solder | Polybutylene Terephthalate (PBT) | 17 mm | 0.669 " | |||||||||||
CnC Tech, LLC | Surface Mount | All | Latch Lock/Eject Hooks Long | Board to Cable/Wire | Header | Shrouded - 4 Wall | Keying Slot | 0.1 in | 2.54 mm | 2 | Brass | 250 VAC | 2.54 mm | 0.1 in | 3 A | Square | 10 | Gold | -40 °C | 105 ░C | UL94 V-0 | Flash | Male Pin | Solder | Nylon 9T Polyamide (PA9T) | 17 mm | 0.669 " | |||||||||||||
CnC Tech, LLC | Through Hole Right Angle | All | Latch Lock/Eject Hooks Short | Board to Cable/Wire | 0.327 " | 8.3 mm | Header | Shrouded - 4 Wall | Keying Slot | 0.1 in | 2.54 mm | 2 | Brass | 250 VAC | 2.54 mm | 0.1 in | 3 A | Square | 0.134 in | 3.4 mm | 10 | Gold | -40 °C | 105 ░C | UL94 V-0 | Flash | Male Pin | Solder | Polybutylene Terephthalate (PBT) | |||||||||||
CnC Tech, LLC | Free Hanging (In-Line) | Push-Pull | Header | Polarizing Key | 2 | 10 | Male Pin | Flash | Gold | IDC | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | ||||||||||||||||||||||||||
CnC Tech, LLC | Through Hole Right Angle | All | Latch Lock/Eject Hooks Short | Board to Cable/Wire | 0.327 " | 8.3 mm | Header | Shrouded - 4 Wall | Keying Slot | 0.1 in | 2.54 mm | 2 | Brass | 2.54 mm | 0.1 in | Square | 0.134 in | 3.4 mm | 10 | -40 °C | 105 ░C | UL94 V-0 | Male Pin | Solder | Polybutylene Terephthalate (PBT) | 2.03 µm | 80 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.38 | |
| 10 | $ 1.16 | |||
| 80 | $ 1.04 | |||
| 936 | $ 0.83 | |||
| 1872 | $ 0.71 | |||
| 5616 | $ 0.66 | |||
| 10296 | $ 0.63 | |||
Description
General part information
3010-10 Series
Connector Header Surface Mount 10 position 0.100" (2.54mm)
