RB85P06C24G

Active

Serpac

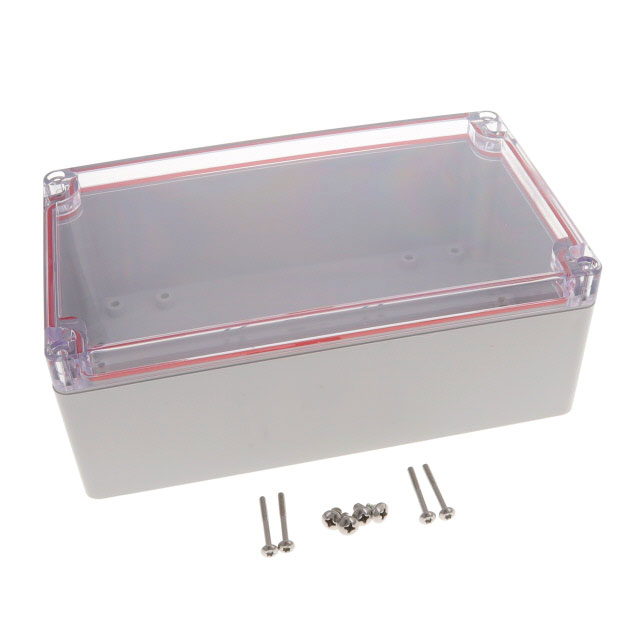

PLASTIC ENCLOSURE, JUNCTION BOX, POLYCARBONATE, 74.9 MM, 120 MM, 200 MM, IP67

Search across all available documentation for this part.

Active

Serpac

PLASTIC ENCLOSURE, JUNCTION BOX, POLYCARBONATE, 74.9 MM, 120 MM, 200 MM, IP67

Technical Specifications

Parameters and characteristics for this part

Specification	RB85P06C24G

Area (L x W) [custom]	239 cm˛
Area (L x W) [custom]	37.1 in˛
Color	Gray, Clear Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	2.95 "
Height [z]	74.93 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Thickness	0.12 in
Thickness	3.05 mm

Part	Material Flammability Rating	Ratings	Thickness	Thickness	Material	Container Type	Height [z]	Height [z]	Color	Area (L x W) [custom]	Area (L x W) [custom]	Design	Height [diameter]	Height [diameter]	Area (L x W)	Area (L x W)
Serpac RB85P06C24G	UL94 V-0	IP67 NEMA 4	0.12 in	3.05 mm	Plastic Polycarbonate	Box	2.95 "	74.93 mm	Clear Cover/Door Gray	239 cm˛	37.1 in˛	Cover Included
Serpac RB85P06C10G	UL94 V-0	IP67 NEMA 4	0.12 in	3.05 mm	Plastic Polycarbonate	Box			Clear Cover/Door Gray			Cover Included	1.59 in	40.39 mm	37.1 in²	239 cm²
Serpac RB85P06C24C	UL94 V-0	IP67 NEMA 4	0.12 in	3.05 mm	Plastic Polycarbonate	Box	2.95 "	74.93 mm	Clear			Cover Included			37.1 in²	239 cm²
Serpac RB85P06C10B	UL94 V-0	IP67 NEMA 4	0.12 in	3.05 mm	Plastic Polycarbonate	Box			Black Clear Cover/Door			Cover Included	1.59 in	40.39 mm	37.1 in²	239 cm²
Serpac RB85P06C10C	UL94 V-0	IP67 NEMA 4	0.12 in	3.05 mm	Plastic Polycarbonate	Box			Clear			Cover Included	1.59 in	40.39 mm	37.1 in²	239 cm²
Serpac RB85P06C24B	UL94 V-0	IP67 NEMA 4	0.12 in	3.05 mm	Plastic Polycarbonate	Box	2.95 "	74.93 mm	Black Clear Cover/Door			Cover Included			37.1 in²	239 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included X 2.950" (74.93mm)

Technical documentation and resources

No documents available
