AB-FO02401-02012-9A1

Active

American Bright Optoelectronics Corporation

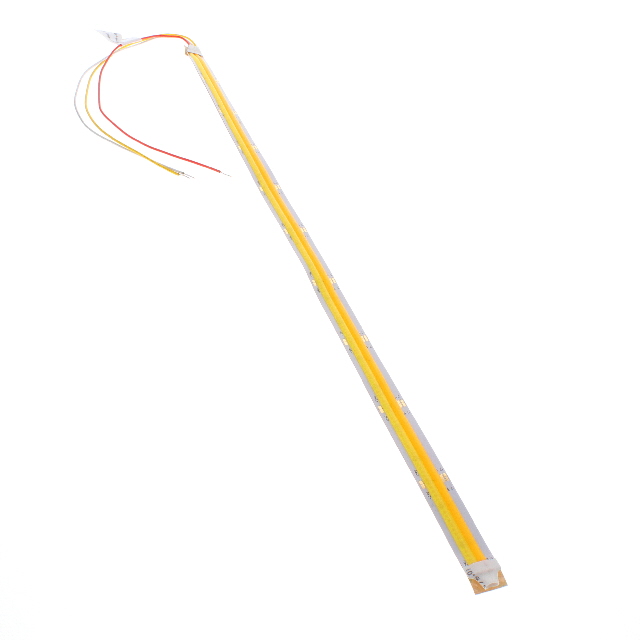

LED COB AB-FO WH LNR STRP 6500K

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED COB AB-FO WH LNR STRP 6500K

Technical Specifications

Parameters and characteristics for this part

Specification	AB-FO02401-02012-9A1

CCT (K) [Max]	6500 K
CCT (K) [Min]	3000 K
Color	White, Cool, White, Warm
Configuration	Linear Light Strip, Flexible
CRI (Color Rendering Index)	90
Current - Test	250 mA
Features	IP65
Height [z]	2.2 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	80 lm/W, 70 lm/W
Luminous Flux @ Current/Temperature	960 lm, 840 lm
Size / Dimension [x]	20 "
Size / Dimension [y]	14 mm
Type	Chip On Board (COB)
Viewing Angle	150 °
Voltage - Forward (Vf) (Typ)	24 V

LED COB AB-FO WH LNR STRP 6500K

Part	Configuration	Lens Type	Lumens/Watt @ Current - Test	Features	CCT (K) [Max]	CCT (K) [Min]	Luminous Flux @ Current/Temperature	Color	Height [z]	CRI (Color Rendering Index)	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Type
American Bright Optoelectronics Corporation AB-FO02401-02012-9A1	Flexible, Linear Light Strip	Flat	70 lm/W, 80 lm/W	IP65	6500 K	3000 K	840 lm, 960 lm	White, Cool, White, Warm	2.2 mm	90	150 °	24 V	250 mA	20 "	14 mm	Chip On Board (COB)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) AB-FO White, Warm / White, Cool Linear Light Strip, Flexible
