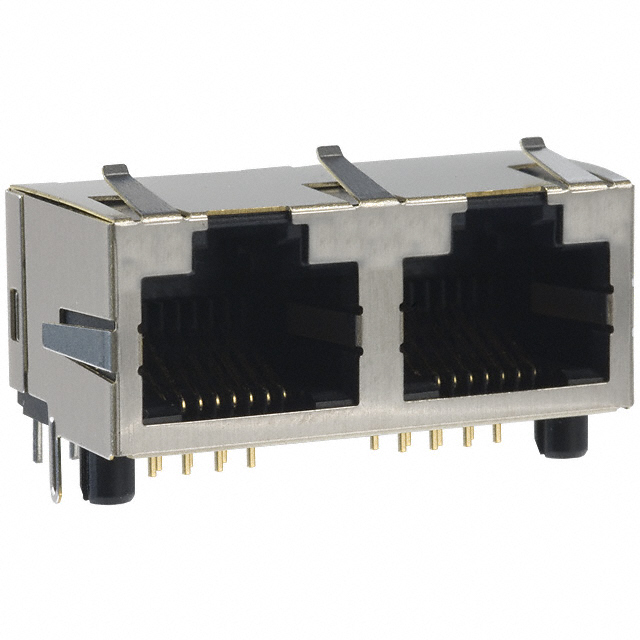

A20-216-660-010

Active

EDAC Inc.

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Active

EDAC Inc.

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A20-216-660-010	A20-216 Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Material	Phosphor Bronze	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED	Does Not Contain LED, Green - Green
Mounting Type	Through Hole	Through Hole
Number of Ports	2	2
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Number of Rows	1	1
Orientation	90 °	90 °
Ratings	Cat5	Cat5
Shielding	Shielded	Shielded
Tab Direction	Up	Up
Termination	Solder	Solder

CONN MOD JACK 8P8C R/A SHIELDED

Part	Number of Ports	Ratings	Contact Finish	Orientation	Tab Direction	Mounting Type	Contact Material	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Termination	Number of Positions/Contacts	Shielding	LED Color	Housing Material
EDAC Inc. A20-216-660-010	2	Cat5	Gold	90 °	Up	Through Hole	Phosphor Bronze	1	0.76 Ám	30 Áin	Jack	Solder	8p8c (RJ45, Ethernet)	Shielded	Does Not Contain LED	Polybutylene Terephthalate (PBT)
EDAC Inc. A20-216-663-310	2	Cat5	Gold	90 °	Up	Through Hole	Phosphor Bronze	1	0.76 Ám	30 Áin	Jack	Solder	8p8c (RJ45, Ethernet)	Shielded	Green - Green	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.82

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat5
