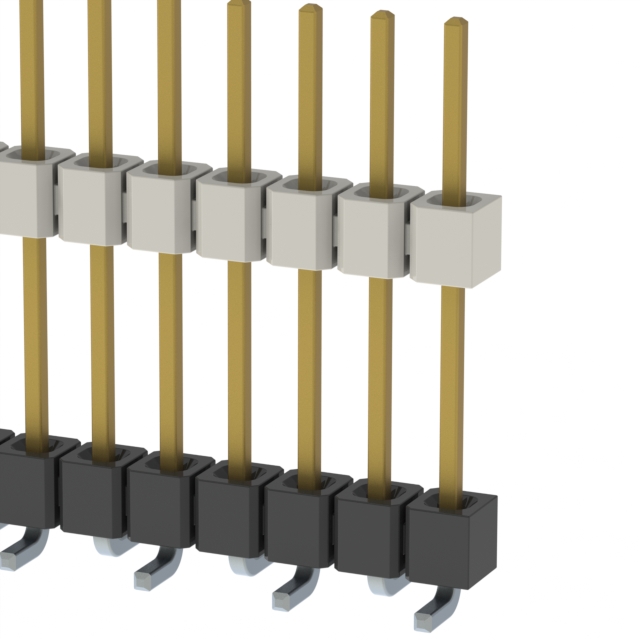

HW-16-10-S-S-520-SM

Active

Samtec Inc.

CONN HDR 16POS 0.1 STACK SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHW Datasheet HW Series Other Related Documents 01 +1

HW-16-10-S-S-520-SM

Active

Samtec Inc.

CONN HDR 16POS 0.1 STACK SMD

Deep-Dive with AI

DocumentsHW Datasheet HW Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-16-10-S-S-520-SM

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	30 µin
Contact Finish Thickness - Post (Mating)	0.76 µm
Length - Overall Pin	19.431 mm
Length - Overall Pin	0.765 in
Length - Post (Mating) [x]	6.223 mm
Length - Post (Mating) [x]	0.245 in
Length - Stack Height [x]	0.52 in
Length - Stack Height [x]	13.208 mm
Mounting Type	Surface Mount
Number of Positions	16
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-16-10 Series

Part	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Number of Positions	Contact Finish - Post (Mating)	Number of Rows	Length - Overall Pin	Length - Overall Pin	Mounting Type	Length - Stack Height [z]	Length - Stack Height [z]	Termination	Pitch [x]	Pitch [x]	Length - Stack Height [x]	Length - Stack Height [x]	Row Spacing [x]	Row Spacing	Length - Tail	Length - Tail	Length - Overall Pin [x]	Length - Tail [x]	Length - Tail [x]
Samtec Inc. HW-16-10-L-S-512-SM	0.25 Ám	10 Áin	6.426 mm	0.253 in	Black	16	Gold	1	19.431 mm	0.765 in	Surface Mount	13.005 mm	0.512 in	Solder	2.54 mm	0.1 in
Samtec Inc. HW-16-10-L-D-335-SM-A	0.25 Ám	10 Áin	10.922 mm	0.43 in	Black		Gold	2	19.431 mm	0.765 in	Surface Mount			Solder	2.54 mm	0.1 in	0.335 in	8.509 mm	0.1 in	2.54 mm
Samtec Inc. HW-16-10-L-D-355-SM-A	0.25 Ám	10 Áin	10.414 mm	0.41 in	Black		Gold	2	19.431 mm	0.765 in	Surface Mount			Solder	2.54 mm	0.1 in	0.355 in	9.017 mm	0.1 in	2.54 mm
Samtec Inc. HW-16-10-L-D-354-SM-A	0.25 Ám	10 Áin	10.439 mm	0.411 in	Black		Gold	2	19.431 mm	0.765 in	Surface Mount			Solder	2.54 mm	0.1 in	0.354 in	8.992 mm	0.1 in	2.54 mm
Samtec Inc. HW-16-10-F-D-555-SM	0.076 Ám	3 Áin	5.334 mm	0.21 in	Black		Gold	2	19.431 mm	0.765 in	Surface Mount			Solder	2.54 mm	0.1 in	0.555 in	14.097 mm	0.1 in	2.54 mm
Samtec Inc. HW-16-10-TM-S-630-110			2.286 mm	0.09 in	Black	16	Tin	1	21.082 mm		Through Hole			Solder	2.54 mm	0.1 in	0.63 in	16.002 mm			2.8 mm	0.11 in	0.83 in
Samtec Inc. HW-16-10-LM-D-355-SM-A	0.25 Ám	10 Áin	10.414 mm	0.41 in	Black		Gold	2	19.431 mm	0.765 in	Surface Mount			Solder	2.54 mm	0.1 in	0.355 in	9.017 mm	0.1 in	2.54 mm
Samtec Inc. HW-16-10-L-D-435-120	0.25 Ám	10 Áin	6.985 mm	0.275 in	Black		Gold	2	21.082 mm		Through Hole			Solder	2.54 mm	0.1 in			0.1 in	2.54 mm			0.83 in	0.12 in	3.048 mm
Samtec Inc. HW-16-10-F-D-550-SM-A	0.076 Ám	3 Áin	5.791 mm	0.215 in	Black		Gold	2	19.431 mm	0.765 in	Surface Mount			Solder	2.54 mm	0.1 in	0.55 in	13.97 mm	0.1 in	2.54 mm
Samtec Inc. HW-16-10-S-S-520-SM	0.76 µm	30 µin	6.223 mm	0.245 in	Black	16	Gold	1	19.431 mm	0.765 in	Surface Mount			Solder	2.54 mm	0.1 in	0.52 in	13.208 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	14	$ 5.23
