STTH1004SB-TR

Active

STMicroelectronics

DISCRETE

Search across all available documentation for this part.

Active

STMicroelectronics

DISCRETE

Technical Specifications

Parameters and characteristics for this part

Specification	STTH1004SB-TR

Current - Average Rectified (Io)	10 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Through Hole
Operating Temperature - Junction	175 °C
Package / Case	TO-220-2 Full Pack
Reverse Recovery Time (trr)	140 ns
Speed	200 mA, 500 ns
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

DISCRETE

Part	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Package / Case	Speed
STMicroelectronics STTH1004SB-TR	140 ns	10 A	Through Hole	400 V	1.7 V	Standard	1 µA	175 °C	TO-220-2 Full Pack	200 mA, 500 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

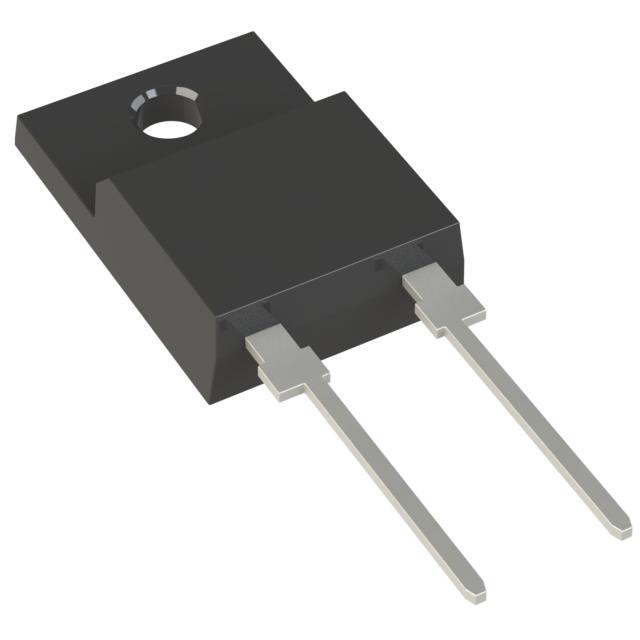

Diode 400 V 10A Through Hole TO-220FPAC
