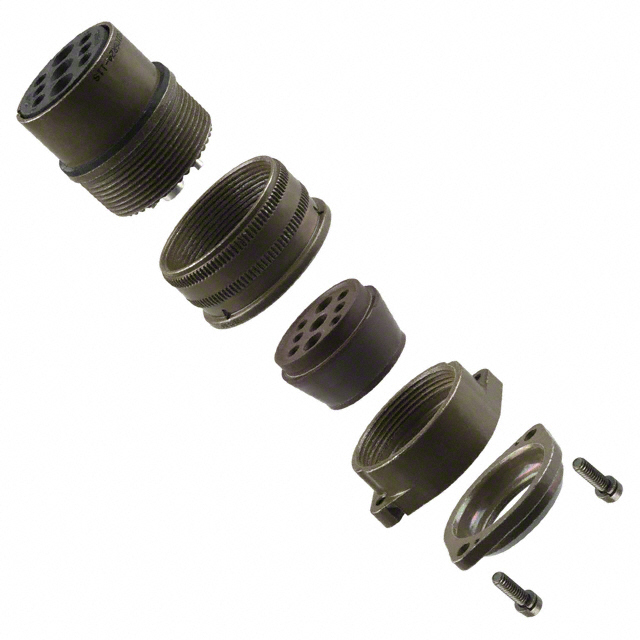

MS3106R-24-11S

Unknown

Amphenol Aerospace Operations

CONN PLUG FMALE 9P SILV SLDR CUP

Search across all available documentation for this part.

Unknown

Amphenol Aerospace Operations

CONN PLUG FMALE 9P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106R-24-11S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	24-11
Shielding	Unshielded

Part	Ingress Protection	Grade	Features	Primary Material	Qualification	Shielding	Contact Material	Insert Material	Contact Finish - Mating	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Size - Insert	Color	Mounting Type	Orientation	Connector Type	Shell Finish	Applications
Amphenol Aerospace Operations MS3106R24-12S
Amphenol Aerospace Operations MS3106R-24-11S	Environment Resistant	Military	Cable Clamp Coupling Nut	Metal	MIL-DTL-5015	Unshielded	Copper Alloy	Neoprene	Silver	Aluminum Alloy	-55 °C	125 °C	9	24-11	Olive Drab	Free Hanging (In-Line)	N	Female Sockets Plug	Olive Drab Chromate over Cadmium	Marine Military
Amphenol Aerospace Operations MS3106R24-10S

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Plug, Female Sockets Solder Cup
