172100RP

Active

Amphenol RF

CONN RP-N PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN RP-N PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	172100RP

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-N Type
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

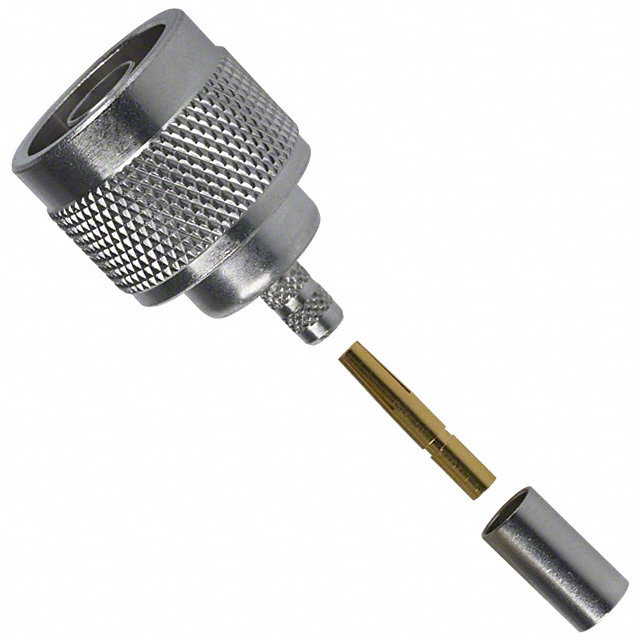

Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

Part	Center Contact Material	Contact Termination	Includes	Voltage Rating	Center Contact Plating	Impedance	Connector Type	Connector Style	Insertion Loss	Cable Group	Shield Termination	Housing Color	Body Finish	Number of Ports	Dielectric Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Mounting Type	Body Material
Amphenol RF 172100RP	Phosphor Bronze	Crimp	1 Connector 1 Contact 1 Ferrule	1500 V	Gold	50 Ohms	Female Socket Plug	RP-N Type	0.15 dB	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Crimp	Silver	Nickel	1	Polytetrafluoroethylene (PTFE)	500	-65 ░C	165 °C	11 GHz	Free Hanging (In-Line)	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-N Type Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
