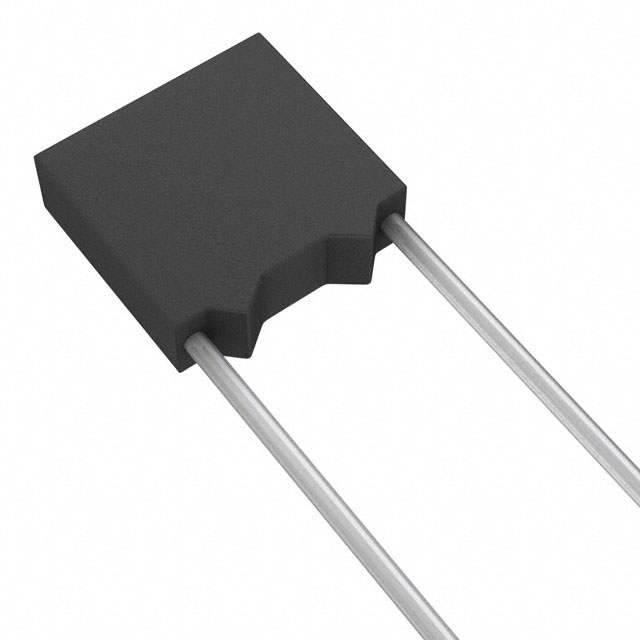

CKR05BX103KMV

Active

KEMET

CAP CER 10000PF 100V 10% RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 10000PF 100V 10% RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Failure Rate	Package / Case	Applications	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Temperature Coefficient	Tolerance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Style	Capacitance
KEMET CKR05BX473KM	M (1%)	Radial	High Reliability	Through Hole	0.09 "	0.19 "	2.29 mm	4.83 mm	-55 °C	125 °C	50 VDC	BX	10 %	5.08 mm	0.2 in	5.08 mm	0.2 "	Formed Leads
KEMET CKR05BX103KMV		Radial	High Reliability	Through Hole	0.09 "	0.19 "	2.29 mm	4.83 mm	-55 °C	125 °C	100 V	BX	10 %	5.08 mm	0.2 in	5.08 mm	0.2 "	Formed Leads	10000 pF
KEMET CKR05BX222KP	P	Radial	High Reliability	Through Hole	0.09 "	0.19 "	2.29 mm	4.83 mm	-55 °C	125 °C	100 V	BX	10 %	5.08 mm	0.2 in	5.08 mm	0.2 "	Formed Leads	2200 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10000 pF ±10% 100V Ceramic Capacitor BX Radial
