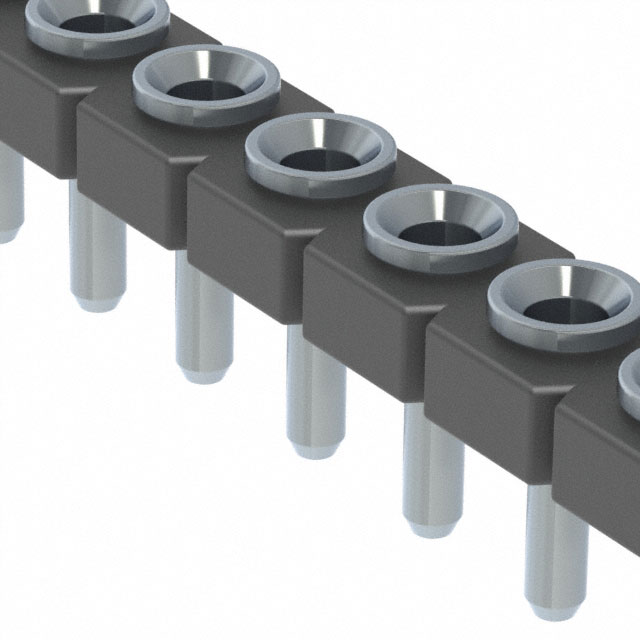

SL-107-TT-19
ActiveSamtec Inc.
CONN RCPT 7POS 0.1 TIN PCB
Deep-Dive with AI
Search across all available documentation for this part.
SL-107-TT-19
ActiveSamtec Inc.
CONN RCPT 7POS 0.1 TIN PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SL-107-TT-19 |
|---|---|
| Connector Type | Receptacle |
| Contact Length - Post [x] | 2.08 mm |
| Contact Length - Post [x] | 0.082 " |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.05 in |
| Insulation Height | 1.27 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
SL-107 Series
| Part | Insulation Material | Contact Material | Fastening Type | Pitch - Mating | Pitch - Mating | Termination | Contact Type | Insulation Color | Number of Rows | Number of Positions | Contact Finish - Post | Insulation Height [z] | Insulation Height [z] | Mounting Type | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Liquid Crystal Polymer (LCP) | Beryllium Copper | Push-Pull | 0.1 in | 2.54 mm | Solder | Female Socket | Black | 1 | 7 | Tin | 0.095 in | 2.41 mm | Through Hole | Circular | 2.41 mm | 0.095 in | 105 ░C | -55 °C | Receptacle | All | |||||||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | Beryllium Copper | Push-Pull | 0.1 in | 2.54 mm | Solder | Female Socket | Black | 1 | 7 | Gold | Through Hole | Circular | 125 °C | -55 °C | Receptacle | All | 0.108 in | 2.75 mm | 0.132 in | 3.35 mm | 10 çin | 0.25 çm | Gold | 30 Áin | 0.76 Ám | ||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | Beryllium Copper | Push-Pull | 0.1 in | 2.54 mm | Solder | Female Socket | Black | 1 | 7 | Through Hole | Circular | 125 °C | -55 °C | Receptacle | All | 0.05 in | 1.27 mm | Gold | 30 Áin | 0.76 Ám | |||||||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | Beryllium Copper | Push-Pull | 0.1 in | 2.54 mm | Solder | Female Socket | Black | 1 | 7 | Gold | Through Hole | Circular | 125 °C | -55 °C | Receptacle | All | 0.108 in | 2.75 mm | 0.122 in | 3.1 mm | 10 çin | 0.25 çm | Gold | 30 Áin | 0.76 Ám | ||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | Beryllium Copper | Push-Pull | 0.1 in | 2.54 mm | Solder | Female Socket | Black | 1 | 7 | Gold | Through Hole | Circular | 2.08 mm | 0.082 " | 125 °C | -55 °C | Receptacle | All | 0.083 " | 2.1 mm | 10 çin | 0.25 çm | Gold | 30 Áin | 0.76 Ám | ||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | Beryllium Copper | Push-Pull | 0.1 in | 2.54 mm | Solder | Female Socket | Black | 1 | 7 | Through Hole | Circular | 125 °C | -55 °C | Receptacle | All | 0.05 in | 1.27 mm | Gold | 30 Áin | 0.76 Ám | |||||||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | Beryllium Copper | Push-Pull | 0.1 in | 2.54 mm | Solder | Female Socket | Black | 1 | 7 | Through Hole | Circular | 125 °C | -55 °C | Receptacle | All | 0.108 in | 2.75 mm | 0.122 in | 3.1 mm | Gold | 30 Áin | 0.76 Ám | |||||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | Beryllium Copper | Push-Pull | 0.1 in | 2.54 mm | Solder | Female Socket | Black | 1 | 7 | Through Hole | Circular | 2.08 mm | 0.082 " | 105 ░C | -55 °C | Receptacle | All | 0.05 in | 1.27 mm | ||||||||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | Beryllium Copper | Push-Pull | 0.1 in | 2.54 mm | Solder | Female Socket | Black | 1 | 7 | Through Hole | Circular | 2.08 mm | 0.082 " | 125 °C | -55 °C | Receptacle | All | 0.05 in | 1.27 mm | Gold | 30 Áin | 0.76 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.63 | |
Description
General part information
SL-107 Series
7 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
