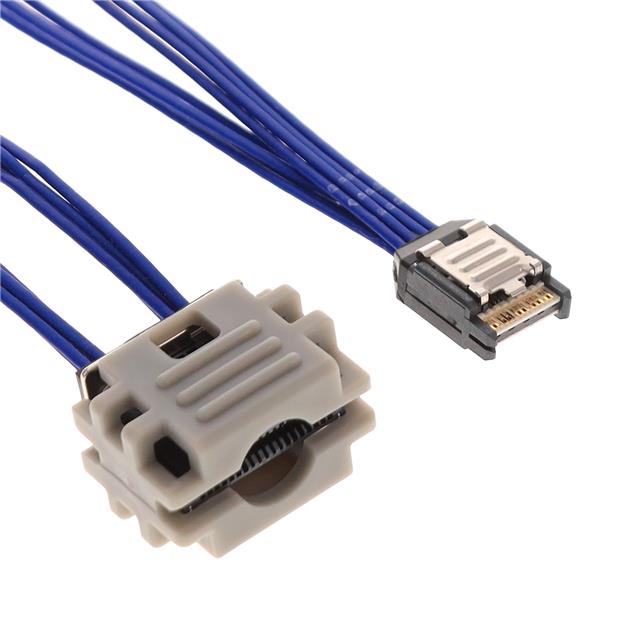

FQSFP-01-06.0-S-PF-4

Active

Samtec Inc.

CBL ASSY FLYOVER 6" ARC6-8

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSY FLYOVER 6" ARC6-8

Technical Specifications

Parameters and characteristics for this part

Part	Cable Type	Fastening Type	Shielding	Gender	Cable Connectors	Frequency - Max [Max]	Length [x]	Length [x]	Length [x]	Connector Type	Color	Number of Positions	Wire Gauge	Length	Length
Samtec Inc. FQSFP-01-06.0-L-PF-3	Flat Twin Axial	Push-Pull	Unshielded	Male to Male	QSFP28	112 Gbps	6 "	0.5 '	152.4 mm	Plug to Plug	Blue	38	34 AWG
Samtec Inc. FQSFP-01-20.0-L-PF-4	Flat Twin Axial	Push-Pull	Unshielded	Male to Male	QSFP28	112 Gbps				Plug to Plug	Blue	38	34 AWG	508 mm	1.67 ft
Samtec Inc. FQSFP-01-20.0-S-PF-3	Flat Twin Axial	Push-Pull	Unshielded	Male to Male	QSFP28	112 Gbps				Plug to Plug	Blue	38	34 AWG	508 mm	1.67 ft
Samtec Inc. FQSFP-01-20.0-S-PF-4	Flat Twin Axial	Push-Pull	Unshielded	Male to Male	QSFP28	112 Gbps				Plug to Plug	Blue	38	34 AWG	508 mm	1.67 ft
Samtec Inc. FQSFP-01-06.0-S-PF-4	Flat Twin Axial	Push-Pull	Unshielded	Male to Male	QSFP28	112 Gbps	6 "	0.5 '	152.4 mm	Plug to Plug	Blue	38	34 AWG
Samtec Inc. FQSFP-01-10.0-L-PF-3	Flat Twin Axial	Push-Pull	Unshielded	Male to Male	QSFP28	112 Gbps	10 "	0.833 ft	25.4 cm	Plug to Plug	Blue	38	34 AWG
Samtec Inc. FQSFP-01-10.0-L-PF-4	Flat Twin Axial	Push-Pull	Unshielded	Male to Male	QSFP28	112 Gbps	10 "	0.833 ft	25.4 cm	Plug to Plug	Blue	38	34 AWG
Samtec Inc. FQSFP-01-06.0-L-PF-4	Flat Twin Axial	Push-Pull	Unshielded	Male to Male	QSFP28	112 Gbps	6 "	0.5 '	152.4 mm	Plug to Plug	Blue	38	34 AWG
Samtec Inc. FQSFP-01-10.0-S-PF-3	Flat Twin Axial	Push-Pull	Unshielded	Male to Male	QSFP28	112 Gbps	10 "	0.833 ft	25.4 cm	Plug to Plug	Blue	38	34 AWG
Samtec Inc. FQSFP-01-20.0-L-PF-3	Flat Twin Axial	Push-Pull	Unshielded	Male to Male	QSFP28	112 Gbps				Plug to Plug	Blue	38	34 AWG	508 mm	1.67 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

38 Position QSFP28 Plug to Plug 0.500' (152.40mm, 6.000") Blue Unshielded
