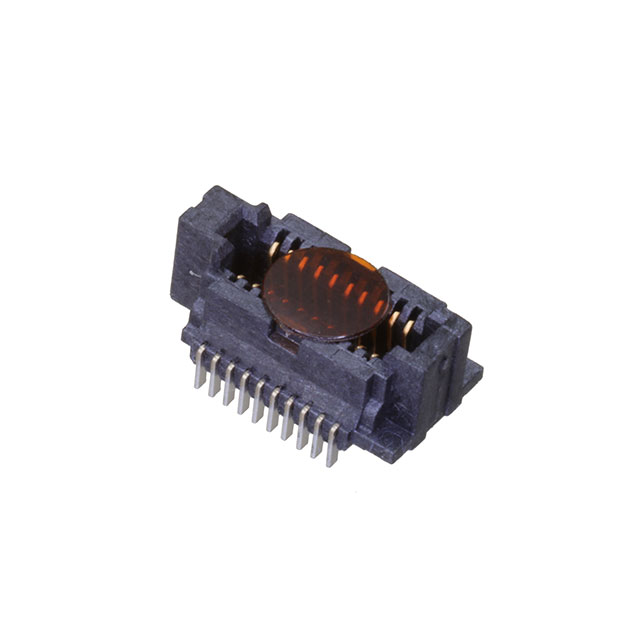

SS5-10-3.50-L-D-K-TR

Active

Samtec Inc.

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	SS5-10-3.50-L-D-K-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place
Height Above Board	3.35 mm
Height Above Board	0.132 in
Mated Stacking Heights	6 mm, 5.5 mm, 4.5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Features	Mounting Type	Number of Rows	Connector Type	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Samtec Inc. SS5-10-3.00-L-D-K-TR	Pick and Place	Surface Mount	2	Outer Shroud Contacts Socket	2.85 mm	0.112 in	0.5 mm	0.02 in	Gold	4 mm 4.5 mm 5.5 mm	10 Áin	0.25 Ám	20
Samtec Inc. SS5-10-3.50-L-D-K-TR	Pick and Place	Surface Mount	2	Outer Shroud Contacts Socket	3.35 mm	0.132 in	0.5 mm	0.02 in	Gold	4.5 mm 5.5 mm 6 mm	10 Áin	0.25 Ám	20
