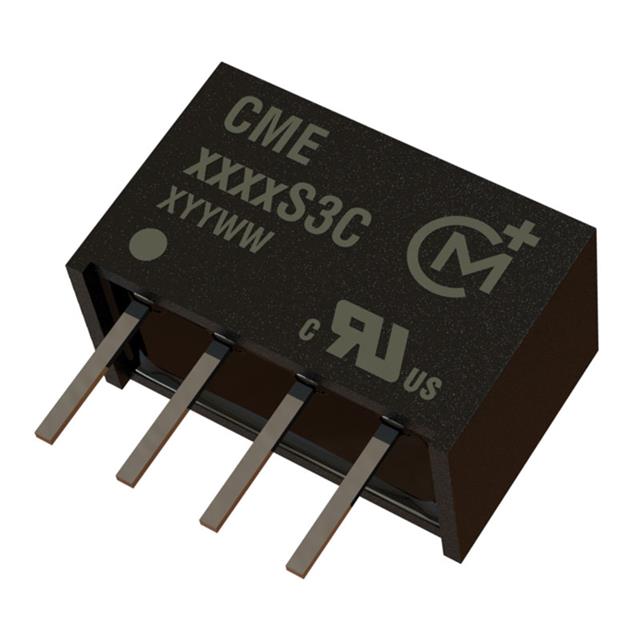

CME0303S3C
ActiveMurata Power Solutions Inc.
ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, FIXED, THROUGH HOLE, 750 MW, 3.3 V, 227 MA ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
CME0303S3C
ActiveMurata Power Solutions Inc.
ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, FIXED, THROUGH HOLE, 750 MW, 3.3 V, 227 MA ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CME0303S3C | CME03 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 227 mA | 150 - 227 mA |
| Efficiency | 73 % | 73 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 4-SIP Module | 4-SIP Module |
| Power (Watts) | 0.75 W | 0.75 W |
| Size / Dimension [x] | 11.5 mm | 11.5 mm |
| Size / Dimension [x] | 0.45 in | 0.45 in |
| Size / Dimension [y] | 6 mm | 6 mm |
| Size / Dimension [y] | 0.24 " | 0.24 " |
| Size / Dimension [z] | 7.5 mm | 7.5 mm |
| Size / Dimension [z] | 0.29 " | 0.29 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 3.63 V | 3.63 V |
| Voltage - Input (Min) [Min] | 2.97 V | 2.97 V |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 3.3 V | 3.3 - 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
CME03 Series
ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, FIXED, THROUGH HOLE, 750 MW, 3.3 V, 227 MA ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Efficiency | Package / Case | Current - Output (Max) [Max] | Voltage - Output 1 | Number of Outputs | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Max) [Max] | Type | Voltage - Isolation | Voltage - Input (Min) [Min] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. CME0303S3C | ||||||||||||||||||||
Murata Power Solutions Inc. CME0303S3C | 85 °C | -40 °C | 0.75 W | 73 % | 4-SIP Module | 227 mA | 3.3 V | 1 | Through Hole | 11.5 mm | 7.5 mm | 6 mm | 0.45 in | 0.24 " | 0.29 " | 3.63 V | Isolated Module | 3000 V | 2.97 V | ITE (Commercial) |
Murata Power Solutions Inc. CME0305S3C | ||||||||||||||||||||
Murata Power Solutions Inc. CME0305S3C | 85 °C | -40 °C | 0.75 W | 73 % | 4-SIP Module | 150 mA | 5 V | 1 | Through Hole | 11.5 mm | 7.5 mm | 6 mm | 0.45 in | 0.24 " | 0.29 " | 3.63 V | Isolated Module | 3000 V | 2.97 V | ITE (Commercial) |
Description
General part information
CME03 Series
Isolated Module DC DC Converter 1 Output 3.3V 227mA 2.97V - 3.63V Input
