2903330

Active

Phoenix Contact

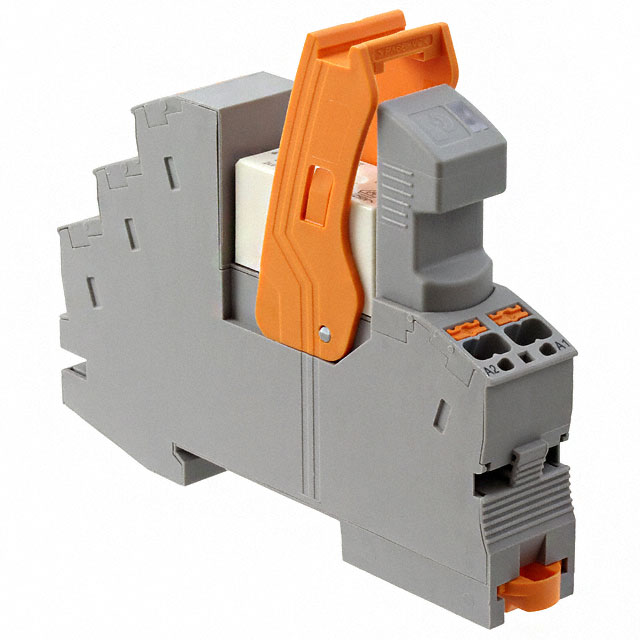

RELAY GEN PURPOSE DPDT 50MA 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2903330

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 50MA 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.88

Description

General part information

29033 Series

General Purpose Relay DPDT (2 Form C) DIN Rail

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2903330	29033 Series

Approval Agency	-	CSA
Coil Current	18 mA	6 - 70 mA
Coil Resistance	1.3 kOhms	1.3 - 750 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 230 VAC
Contact Form	DPDT (2 Form C)	4PDT (4 Form C), SPDT (1 Form C), DPDT (2 Form C), SPST-NO (1 Form A), 3PDT (3 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Nickel (AgNi), Silver Tin Oxide (AgSnO), Gold (Au)
Contact Rating (Current)	50 mA	5 - 50 A
Features	Socket Included, Diode, Lighted Indicator	Lighted Indicator, Varistor, Socket Included, Diode
Mounting Type	DIN Rail	DIN Rail
Operate Time	8 ms	5 - 18 ms
Operating Temperature [Max]	70 °C	50 - 70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	8 - 20 ms
Switching Voltage	36 VDC, 30 VAC	30 - 250 VAC
Termination Style	Spring Terminal	Spring Terminal, Screw Terminal

29033 Series

ELECTROMECHANICAL RELAY 24VAC 5A 4PDT(31X75X96)MM DIN RAIL MODULE RELAY

Part	Switching Voltage	Contact Form	Release Time	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Mounting Type	Contact Rating (Current)	Coil Current	Coil Voltage	Features	Termination Style	Relay Type	Approval Agency	Contact Material	Coil Resistance
Phoenix Contact 2903306	250 VAC, 250 VDC	4PDT (4 Form C)	20 ms	Non Latching	-40 °C	50 °C	15 ms	DIN Rail	5 A	70 mA	24 VAC	Lighted Indicator, Socket Included, Varistor	Spring Terminal	General Purpose	CSA	Silver Nickel (AgNi)	342.9 Ohms
Phoenix Contact 2903374	250 VAC, 250 VDC	SPDT (1 Form C)	8 ms	Non Latching	-40 °C	60 °C	5 ms	DIN Rail	6 A	9 mA	24 VDC	Diode, Lighted Indicator, Socket Included	Screw Terminal	General Purpose		Silver Tin Oxide (AgSnO)	2.67 kOhms
Phoenix Contact 2903357	250 VAC, 250 VDC	SPDT (1 Form C)	20 ms	Non Latching	-40 °C	50 °C	12 ms	DIN Rail	10 A	33 mA	24 VAC	Lighted Indicator, Socket Included, Varistor	Screw Terminal	General Purpose	CSA	Silver Nickel (AgNi)	727 Ohms
Phoenix Contact 2903330	30 VAC, 36 VDC	DPDT (2 Form C)	10 ms	Non Latching	-40 °C	70 °C	8 ms	DIN Rail	50 mA	18 mA	24 VDC	Diode, Lighted Indicator, Socket Included	Spring Terminal	General Purpose		Gold (Au), Silver Nickel (AgNi)	1.3 kOhms
Phoenix Contact 2903370	250 VAC, 250 VDC	SPDT (1 Form C)	8 ms	Non Latching	-40 °C	60 °C	5 ms	DIN Rail	6 A	9 mA	24 VDC	Diode, Lighted Indicator, Socket Included	Spring Terminal	General Purpose	CSA	Silver Tin Oxide (AgSnO)	2.67 kOhms
Phoenix Contact 2903331	250 VAC, 250 VDC	DPDT (2 Form C)	20 ms	Non Latching	-40 °C	50 °C	12 ms	DIN Rail	8 A	6 mA	230 VAC	Lighted Indicator, Socket Included, Varistor	Spring Terminal	General Purpose	CSA	Silver Nickel (AgNi)	38.33 kOhms
Phoenix Contact 2903333	250 VAC, 250 VDC	DPDT (2 Form C)	20 ms	Non Latching	-40 °C	50 °C	12 ms	DIN Rail	8 A	33 mA	24 VAC	Lighted Indicator, Socket Included, Varistor	Spring Terminal	General Purpose	CSA	Silver Nickel (AgNi)	727 Ohms
Phoenix Contact 2903364	30 VAC, 36 VDC	SPST-NO (1 Form A)	8 ms	Non Latching	-40 °C	60 °C	5 ms	DIN Rail	50 mA	9 mA	24 VDC	Diode, Lighted Indicator, Socket Included	Screw Terminal	General Purpose		Silver Tin Oxide (AgSnO)	2.67 kOhms
Phoenix Contact 2903317	250 VAC, 250 VDC	4PDT (4 Form C)	20 ms	Non Latching	-40 °C	50 °C	15 ms	DIN Rail	5 A	13 mA	120 VAC	Lighted Indicator, Socket Included, Varistor	Screw Terminal	General Purpose	CSA	Silver Nickel (AgNi)	9.23 kOhms
Phoenix Contact 2903375	250 VAC, 250 VDC	SPDT (1 Form C)	8 ms	Non Latching	-40 °C	60 °C	5 ms	DIN Rail	6 A	16 mA	12 VDC	Diode, Lighted Indicator, Socket Included	Screw Terminal	General Purpose	CSA	Silver Tin Oxide (AgSnO)	750 Ohms
