3-794620-8
ActiveTE Connectivity AMP Connectors

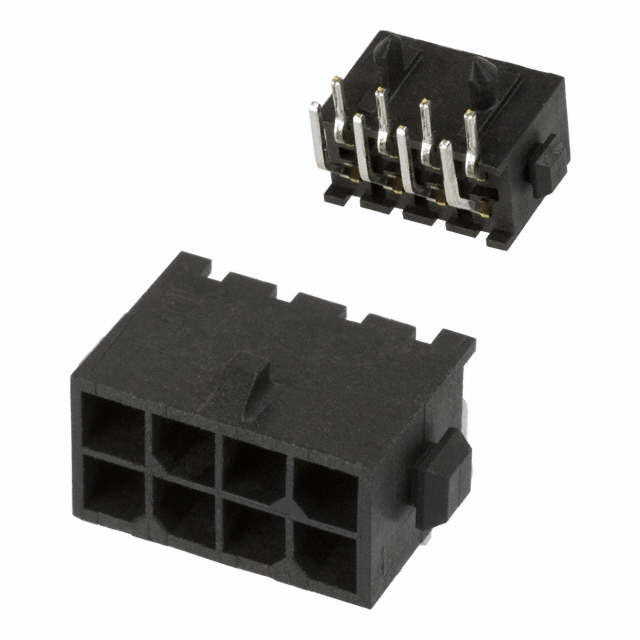

CONN HEADER R/A 8POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-794620-8
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 8POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-794620-8 | 794620 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Black | Black |
| Insulation Height | 7.37 mm | 7.37 mm |
| Insulation Height | 0.29 in | 0.29 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 8 | 2 - 20 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794620 Series
CONN HEADER R/A 18POS 3MM
| Part | Style | Insulation Color | Contact Material | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Voltage Rating | Shrouding | Insulation Material | Number of Positions | Material Flammability Rating | Insulation Height | Insulation Height | Termination | Applications | Contact Finish - Post | Number of Rows | Contact Shape | Connector Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Fastening Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-794620-8 | Board to Cable/Wire | Black | Brass | Through Hole, Right Angle | 30 Áin | 0.76 Ám | -40 °C | 105 ░C | Varies by Wire Gauge | 250 VDC | Shrouded - 4 Wall | Nylon, Polyamide (PA) | 18 | UL94 V-0 | 7.37 mm | 0.29 in | Solder | General Purpose | Tin | 2 | Square | Header | 0.118 in | 3 mm | 2.54 µm | 100 µin | Gold | 3 mm | 0.118 in | All | Locking Ramp | Male Pin |
TE Connectivity AMP Connectors 4-794620-0 | Board to Cable/Wire | Black | Brass | Through Hole, Right Angle | 30 Áin | 0.76 Ám | -40 °C | 105 ░C | Varies by Wire Gauge | 250 VDC | Shrouded - 4 Wall | Nylon, Polyamide (PA) | 10 | UL94 V-0 | 7.37 mm | 0.29 in | Solder | General Purpose | Tin | 2 | Square | Header | 0.118 in | 3 mm | 2.54 µm | 100 µin | Gold | 3 mm | 0.118 in | All | Locking Ramp | Male Pin |
TE Connectivity AMP Connectors 5-794620-0 | Board to Cable/Wire | Black | Brass | Through Hole, Right Angle | 30 Áin | 0.76 Ám | -40 °C | 105 ░C | Varies by Wire Gauge | 250 VDC | Shrouded - 4 Wall | Nylon, Polyamide (PA) | 20 | UL94 V-0 | 7.37 mm | 0.29 in | Solder | General Purpose | Tin | 2 | Square | Header | 0.118 in | 3 mm | 2.54 µm | 100 µin | Gold | 3 mm | 0.118 in | All | Locking Ramp | Male Pin |
TE Connectivity AMP Connectors 3-794620-4 | Board to Cable/Wire | Black | Brass | Through Hole, Right Angle | 30 Áin | 0.76 Ám | -40 °C | 105 ░C | Varies by Wire Gauge | 250 VDC | Shrouded - 4 Wall | Nylon, Polyamide (PA) | 4 | UL94 V-0 | 7.37 mm | 0.29 in | Solder | General Purpose | Tin | 2 | Square | Header | 0.118 in | 3 mm | 2.54 µm | 100 µin | Gold | 3 mm | 0.118 in | All | Locking Ramp | Male Pin |
TE Connectivity AMP Connectors 794620-6 | Board to Cable/Wire | Black | Brass | Through Hole, Right Angle | 30 Áin | 0.76 Ám | -40 °C | 105 ░C | Varies by Wire Gauge | 250 VDC | Shrouded - 4 Wall | Nylon, Polyamide (PA) | 6 | UL94 V-0 | 7.37 mm | 0.29 in | Solder | General Purpose | Tin-Lead | 2 | Square | Header | 0.118 in | 3 mm | 2.54 µm | 100 µin | Gold | 3 mm | 0.118 in | All | Locking Ramp | Male Pin |
TE Connectivity AMP Connectors 3-794620-8 | Board to Cable/Wire | Black | Brass | Through Hole, Right Angle | 30 Áin | 0.76 Ám | -40 °C | 105 ░C | Varies by Wire Gauge | 250 VDC | Shrouded - 4 Wall | Nylon, Polyamide (PA) | 8 | UL94 V-0 | 7.37 mm | 0.29 in | Solder | General Purpose | Tin | 2 | Square | Header | 0.118 in | 3 mm | 2.54 µm | 100 µin | Gold | 3 mm | 0.118 in | All | Locking Ramp | Male Pin |
TE Connectivity AMP Connectors 4-794620-2 | Board to Cable/Wire | Black | Brass | Through Hole, Right Angle | 30 Áin | 0.76 Ám | -40 °C | 105 ░C | Varies by Wire Gauge | 250 VDC | Shrouded - 4 Wall | Nylon, Polyamide (PA) | 12 | UL94 V-0 | 7.37 mm | 0.29 in | Solder | General Purpose | Tin | 2 | Square | Header | 0.118 in | 3 mm | 2.54 µm | 100 µin | Gold | 3 mm | 0.118 in | All | Locking Ramp | Male Pin |
TE Connectivity AMP Connectors 3-794620-2 | Board to Cable/Wire | Black | Brass | Through Hole, Right Angle | 30 Áin | 0.76 Ám | -40 °C | 105 ░C | Varies by Wire Gauge | 250 VDC | Shrouded - 4 Wall | Nylon, Polyamide (PA) | 2 | UL94 V-0 | 7.37 mm | 0.29 in | Solder | General Purpose | Tin | 2 | Square | Header | 2.54 µm | 100 µin | Gold | 3 mm | 0.118 in | All | Locking Ramp | Male Pin | ||
TE Connectivity AMP Connectors 3-794620-6 | Board to Cable/Wire | Black | Brass | Through Hole, Right Angle | 30 Áin | 0.76 Ám | -40 °C | 105 ░C | Varies by Wire Gauge | 250 VDC | Shrouded - 4 Wall | Nylon, Polyamide (PA) | 6 | UL94 V-0 | 7.37 mm | 0.29 in | Solder | General Purpose | Tin | 2 | Square | Header | 0.118 in | 3 mm | 2.54 µm | 100 µin | Gold | 3 mm | 0.118 in | All | Locking Ramp | Male Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.67 | |
| 10 | $ 2.38 | |||
| 234 | $ 2.15 | |||
| 468 | $ 2.14 | |||
| 1170 | $ 1.74 | |||
| 4914 | $ 1.61 | |||
Description
General part information
794620 Series
Connector Header Through Hole, Right Angle 8 position 0.118" (3.00mm)
