5-794620-0

Obsolete

TE Connectivity AMP Connectors

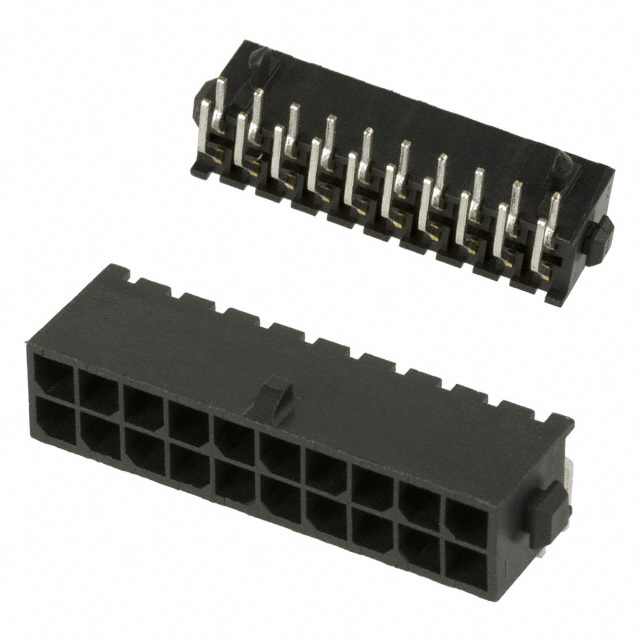

CONN HEADER R/A 20POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-794620-0

Obsolete

TE Connectivity AMP Connectors

CONN HEADER R/A 20POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

794620 Series

Connector Header Through Hole, Right Angle 20 position 0.118" (3.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5-794620-0	794620 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	7.37 mm	7.37 mm
Insulation Height	0.29 in	0.29 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	20	2 - 20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794620 Series

CONN HEADER R/A 18POS 3MM

Part	Style	Insulation Color	Contact Material	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Shrouding	Insulation Material	Number of Positions	Material Flammability Rating	Insulation Height	Insulation Height	Termination	Applications	Contact Finish - Post	Number of Rows	Contact Shape	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Fastening Type	Contact Type
TE Connectivity AMP Connectors 4-794620-8	Board to Cable/Wire	Black	Brass	Through Hole, Right Angle	30 Áin	0.76 Ám	-40 °C	105 ░C	Varies by Wire Gauge	250 VDC	Shrouded - 4 Wall	Nylon, Polyamide (PA)	18	UL94 V-0	7.37 mm	0.29 in	Solder	General Purpose	Tin	2	Square	Header	0.118 in	3 mm	2.54 µm	100 µin	Gold	3 mm	0.118 in	All	Locking Ramp	Male Pin
TE Connectivity AMP Connectors 4-794620-0	Board to Cable/Wire	Black	Brass	Through Hole, Right Angle	30 Áin	0.76 Ám	-40 °C	105 ░C	Varies by Wire Gauge	250 VDC	Shrouded - 4 Wall	Nylon, Polyamide (PA)	10	UL94 V-0	7.37 mm	0.29 in	Solder	General Purpose	Tin	2	Square	Header	0.118 in	3 mm	2.54 µm	100 µin	Gold	3 mm	0.118 in	All	Locking Ramp	Male Pin
TE Connectivity AMP Connectors 5-794620-0	Board to Cable/Wire	Black	Brass	Through Hole, Right Angle	30 Áin	0.76 Ám	-40 °C	105 ░C	Varies by Wire Gauge	250 VDC	Shrouded - 4 Wall	Nylon, Polyamide (PA)	20	UL94 V-0	7.37 mm	0.29 in	Solder	General Purpose	Tin	2	Square	Header	0.118 in	3 mm	2.54 µm	100 µin	Gold	3 mm	0.118 in	All	Locking Ramp	Male Pin
TE Connectivity AMP Connectors 3-794620-4	Board to Cable/Wire	Black	Brass	Through Hole, Right Angle	30 Áin	0.76 Ám	-40 °C	105 ░C	Varies by Wire Gauge	250 VDC	Shrouded - 4 Wall	Nylon, Polyamide (PA)	4	UL94 V-0	7.37 mm	0.29 in	Solder	General Purpose	Tin	2	Square	Header	0.118 in	3 mm	2.54 µm	100 µin	Gold	3 mm	0.118 in	All	Locking Ramp	Male Pin
TE Connectivity AMP Connectors 794620-6	Board to Cable/Wire	Black	Brass	Through Hole, Right Angle	30 Áin	0.76 Ám	-40 °C	105 ░C	Varies by Wire Gauge	250 VDC	Shrouded - 4 Wall	Nylon, Polyamide (PA)	6	UL94 V-0	7.37 mm	0.29 in	Solder	General Purpose	Tin-Lead	2	Square	Header	0.118 in	3 mm	2.54 µm	100 µin	Gold	3 mm	0.118 in	All	Locking Ramp	Male Pin
TE Connectivity AMP Connectors 3-794620-8	Board to Cable/Wire	Black	Brass	Through Hole, Right Angle	30 Áin	0.76 Ám	-40 °C	105 ░C	Varies by Wire Gauge	250 VDC	Shrouded - 4 Wall	Nylon, Polyamide (PA)	8	UL94 V-0	7.37 mm	0.29 in	Solder	General Purpose	Tin	2	Square	Header	0.118 in	3 mm	2.54 µm	100 µin	Gold	3 mm	0.118 in	All	Locking Ramp	Male Pin
TE Connectivity AMP Connectors 4-794620-2	Board to Cable/Wire	Black	Brass	Through Hole, Right Angle	30 Áin	0.76 Ám	-40 °C	105 ░C	Varies by Wire Gauge	250 VDC	Shrouded - 4 Wall	Nylon, Polyamide (PA)	12	UL94 V-0	7.37 mm	0.29 in	Solder	General Purpose	Tin	2	Square	Header	0.118 in	3 mm	2.54 µm	100 µin	Gold	3 mm	0.118 in	All	Locking Ramp	Male Pin
TE Connectivity AMP Connectors 3-794620-2	Board to Cable/Wire	Black	Brass	Through Hole, Right Angle	30 Áin	0.76 Ám	-40 °C	105 ░C	Varies by Wire Gauge	250 VDC	Shrouded - 4 Wall	Nylon, Polyamide (PA)	2	UL94 V-0	7.37 mm	0.29 in	Solder	General Purpose	Tin	2	Square	Header			2.54 µm	100 µin	Gold	3 mm	0.118 in	All	Locking Ramp	Male Pin
TE Connectivity AMP Connectors 3-794620-6	Board to Cable/Wire	Black	Brass	Through Hole, Right Angle	30 Áin	0.76 Ám	-40 °C	105 ░C	Varies by Wire Gauge	250 VDC	Shrouded - 4 Wall	Nylon, Polyamide (PA)	6	UL94 V-0	7.37 mm	0.29 in	Solder	General Purpose	Tin	2	Square	Header	0.118 in	3 mm	2.54 µm	100 µin	Gold	3 mm	0.118 in	All	Locking Ramp	Male Pin
