112444-12G

Active

Amphenol RF

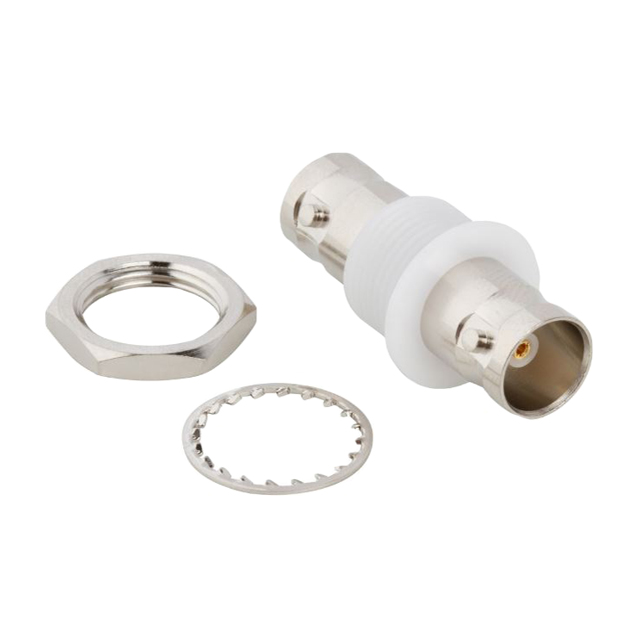

ADAPTER BNC JACK TO JACK 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

ADAPTER BNC JACK TO JACK 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	112444-12G

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Isolated
Frequency - Max [Max]	12 GHz
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Frequency - Max [Max]	Conversion Type	Fastening Type	Center Contact Material	Body Material	Impedance	Includes	Body Finish	Mating Cycles	Adapter Type	Center Gender	Convert From (Adapter End)	Style	Mounting Feature	Center Contact Plating	Features	Convert To (Adapter End)
Amphenol RF 112444-12G	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	BNC to BNC	12 GHz	Same Series	Bayonet Lock	Beryllium Copper	Brass	75 Ohms	1 Connector 1 Lockwasher 1 Nut	Nickel	500	Jack to Jack	Female to Female	BNC Jack Female Socket	Straight	Bulkhead	Gold	Isolated	BNC Jack Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
