1410139-1

Active

TE Connectivity AMP Connectors

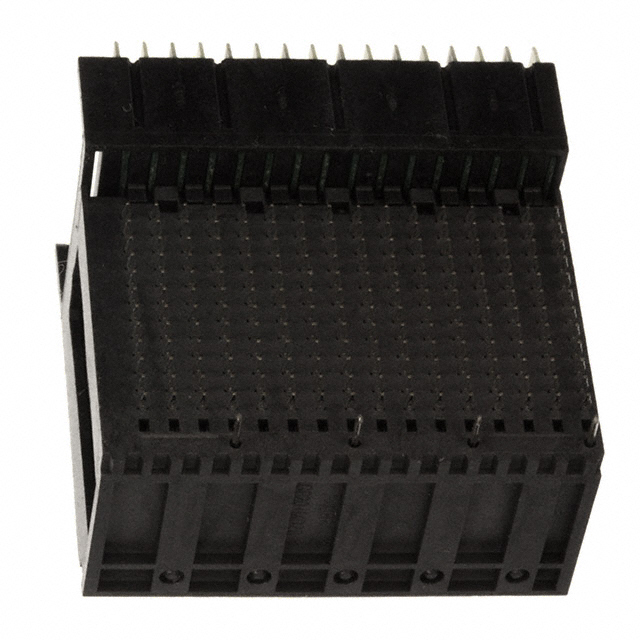

CONN PLUG VITA41 192POS EDGE MNT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG VITA41 192POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1410139-1

Color	Black
Connector Type	Plug, Male Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	96 Differential Pairs, 48 Signal Pairs
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	16
Number of Positions	192
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Press-Fit

CONN PLUG VITA41 192POS EDGE MNT

Part	Material Flammability Rating	Color	Connector Type	Mounting Type	Number of Columns	Features	Connector Usage	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish	Contact Layout, Typical	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions
TE Connectivity AMP Connectors 1410139-1	UL94 V-0	Black	Plug, Male Blades	Board Edge, Right Angle, Through Hole	16	Board Guide	Daughtercard	0.76 Ám	30 Áin	Press-Fit	Gold	48 Signal Pairs, 96 Differential Pairs	All	105 ░C	-55 °C	0.071 in	1.8 mm	12	192

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	128	$ 80.39

General part information

192 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 41, Right End
