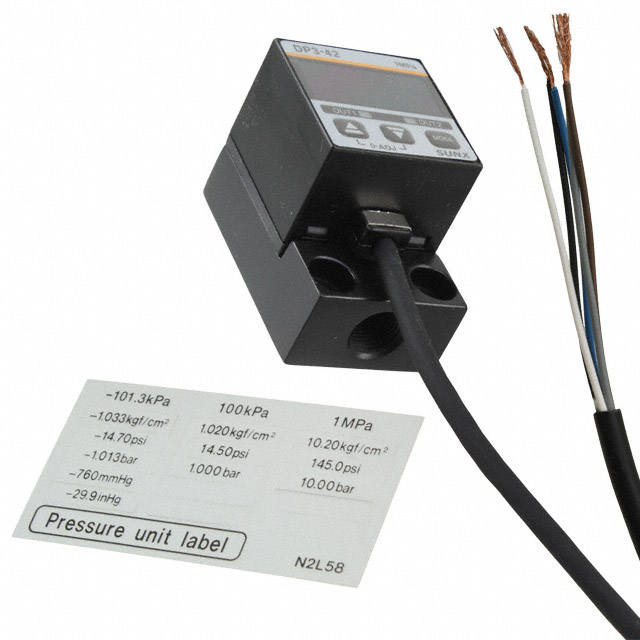

DP3-42Z

Obsolete

Panasonic Industrial Automation Sales

SENSOR PRESSURE 1MPA GAUGE

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SENSOR PRESSURE 1MPA GAUGE

Technical Specifications

Parameters and characteristics for this part

Specification	DP3-42Z

Applications	Industrial Automation
Maximum Pressure [Max]	1470 kPa
Maximum Pressure [Max]	213.21 PSI
Operating Pressure	10 bar
Operating Pressure	145.04 PSI
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Output Type	NPN - Open Collector
Package / Case	Module Box with Display
Port Size	3.18 mm
Port Size	BSPT, Female
Port Size	0.125 "
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Cable
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Package / Case	Output Type	Port Size	Port Size	Port Size	Operating Pressure	Operating Pressure	Applications	Pressure Type
Panasonic Industrial Automation Sales DP3-42Z	1470 kPa	213.21 PSI	Cable	12 V	24 V	Threaded	-10 °C	50 °C	Module Box with Display	NPN - Open Collector	3.18 mm	BSPT Female	0.125 "	10 bar	145.04 PSI	Industrial Automation	Vented Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SENSOR PRESSURE 1MPA GAUGE

Technical documentation and resources

No documents available
