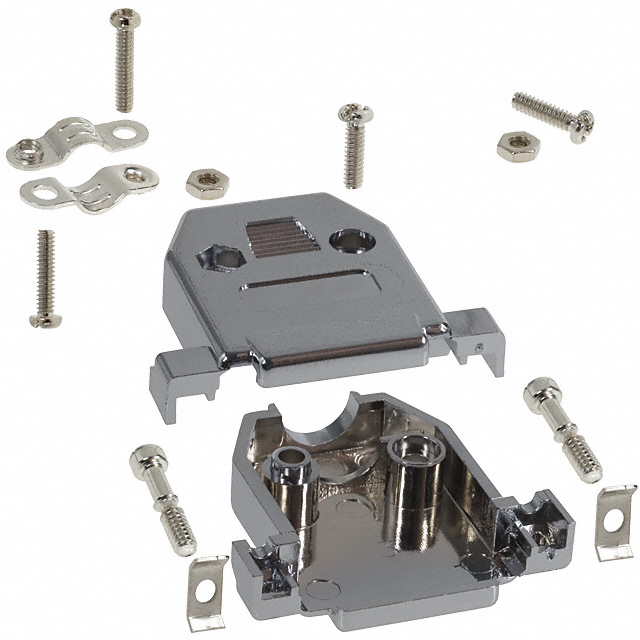

977-015-020R121
ActiveMH Connectors
D SUB BACKSHELL, ARMOR 977 SERIES, DA, 180°, ABS, NICKEL OVER COPPER PLATING BODY
Deep-Dive with AI
Search across all available documentation for this part.
977-015-020R121
ActiveMH Connectors
D SUB BACKSHELL, ARMOR 977 SERIES, DA, 180°, ABS, NICKEL OVER COPPER PLATING BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 977-015-020R121 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | 15pos, HD26pos |
| Compatible Shell Size | A |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Strain Relief |
| Material | Plastic, Metallized |
| Number of Positions | 15 |
| Plating | Nickel over Copper |
| Primary Material | Plastic |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
977-015 Series
The 977 series straight top entry Backshell available in 5 industry sizes/positions (9, 15, 25, 37 and 50). It is available in metalized plastic and plastic. It is internal strain relief eliminates the need for grommets.
