R113312000

Active

Radiall USA, Inc.

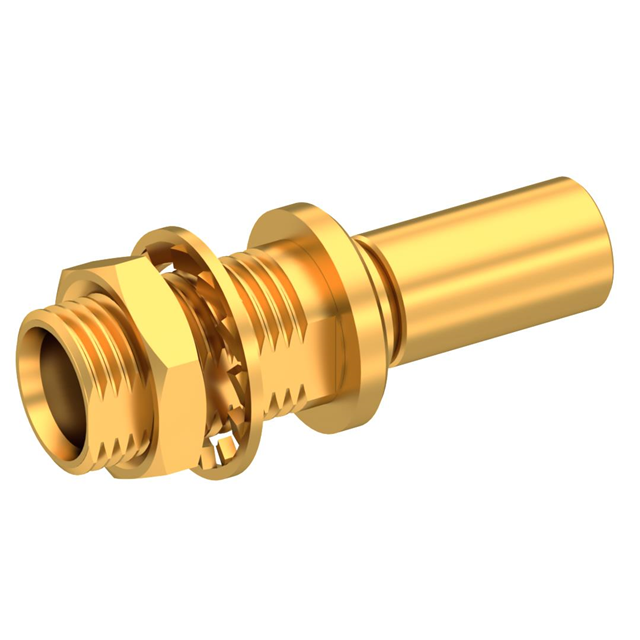

MCX / STRAIGHT BULKHEAD JACK CRI

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MCX / STRAIGHT BULKHEAD JACK CRI

Technical Specifications

Parameters and characteristics for this part

Specification	R113312000

Body Finish	Gold
Body Material	Brass
Cable Group	RG-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	3 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Body Finish	Fastening Type	Center Contact Plating	Body Material	Connector Type	Mating Cycles	Contact Termination	Mounting Feature	Number of Ports	Housing Color	Connector Style	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Impedance	Shield Termination	Voltage Rating	Cable Group	Center Contact Material
Radiall USA, Inc. R113310000	Gold	Snap-On	Gold	Brass	Female Socket Jack	500	Crimp	Bulkhead - Rear Side Nut	1	Gold	MCX	6000 MHz	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Crimp	170 V	316 RG-188	Beryllium Copper
Radiall USA, Inc. R113312000	Gold	Snap-On	Gold	Brass	Female Socket Jack	500	Crimp	Bulkhead - Front Side Nut	1	Gold	MCX	3 GHz	165 °C	-55 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Crimp	250 VDC	RG-316	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.21

General part information

MCX Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
