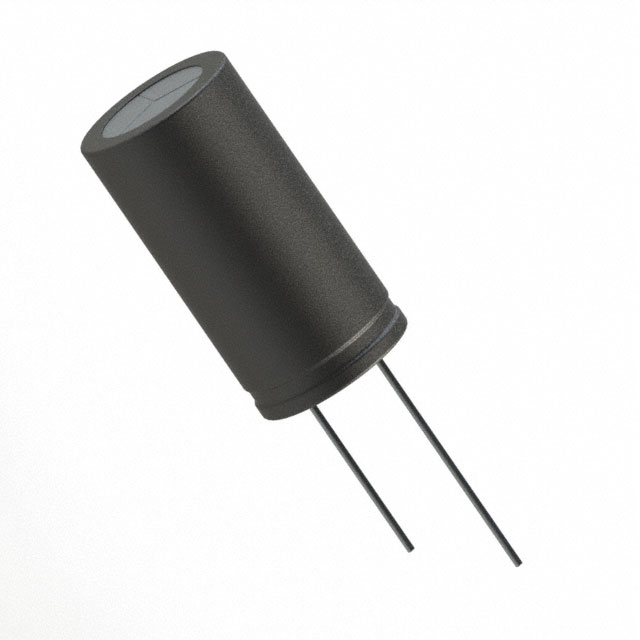

ESH226M500AL4AA

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR,

Search across all available documentation for this part.

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR,

Technical Specifications

Parameters and characteristics for this part

Specification	ESH226M500AL4AA

Applications	General Purpose
Capacitance	22 µF
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	132.25 mA
Ripple Current @ Low Frequency	115 mA
Size / Dimension [diameter]	0.512 in
Size / Dimension [diameter]	13 mm
Tolerance	20 %
Voltage - Rated	500 V

Part	Lead Spacing	Lead Spacing	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Package / Case	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Voltage - Rated	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ESH226M016AC3DA	2 mm	0.079 in	22 µF	5 mm	0.197 "	Polar	Through Hole	0.492 in	12.5 mm	2000 Hrs	Radial Can	General Purpose	-40 °C	105 ░C	20 %	16 V
KEMET ESH226M035AC3AA	2 mm	0.079 in	22 µF	5 mm	0.197 "	Polar	Through Hole	0.492 in	12.5 mm	2000 Hrs	Radial Can	General Purpose	-40 °C	105 ░C	20 %	35 V	65 mA	130 mA
KEMET ESH226M500AL4AA	5 mm	0.197 in	22 µF	13 mm	0.512 in	Polar	Through Hole			2000 Hrs	Radial Can	General Purpose	-25 °C	105 ░C	20 %	500 V	115 mA	132.25 mA	1.063 in	27 mm
KEMET ESH226M025AC3AA	2 mm	0.079 in	22 µF	5 mm	0.197 "	Polar	Through Hole	0.492 in	12.5 mm	2000 Hrs	Radial Can	General Purpose	-40 °C	105 ░C	20 %	25 VDC	60 mA	120 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µF 500 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
