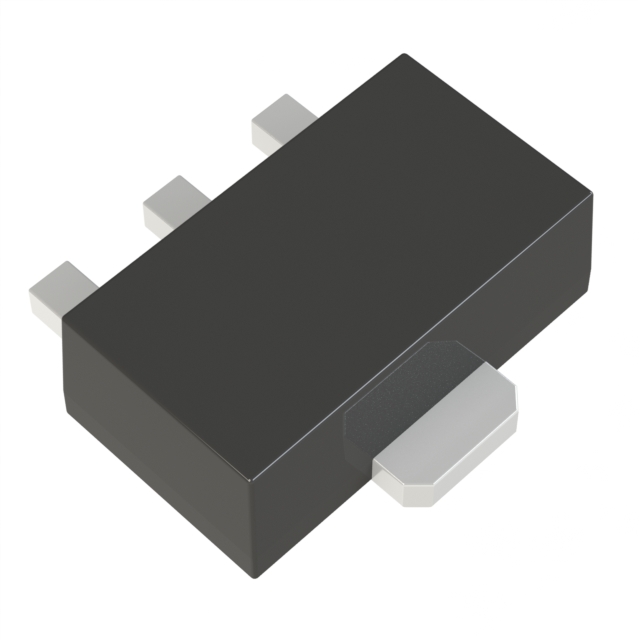

SOT-89

Integrated Circuits (ICs)

XC6216D672PR-G

Active

Torex Semiconductor Ltd

IC REG LINEAR 6.7V 150MA SOT89

SOT-89

Integrated Circuits (ICs)

XC6216D672PR-G

Active

Torex Semiconductor Ltd

IC REG LINEAR 6.7V 150MA SOT89

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC6216D672PR-G

Current - Output	150 mA
Current - Quiescent (Iq)	9 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Fixed
Package / Case	TO-243AA
Package Name	SOT-89
Protection Features	Over Current, Over Temperature
PSRR	30 dB
Voltage - Input (Max)	28 V
Voltage - Output (Min/Fixed)	6.7 V
Voltage Dropout (Max)	1.15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Tape & Reel (TR)	1000	$ 0.51	1w

CAD

3D models and CAD resources for this part

Description

General part information

XC6216 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-89

Documents

Technical documentation and resources

XC6216D672PR-G | Datasheet

XC6216 Series

...

Part	Current - Quiescent (Iq)	Output Configuration	Control Features	Voltage Dropout (Max)	PSRR	Package Name	Protection Features	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Max)	Voltage - Output (Min/Fixed)	Current - Output	Number of Regulators	Mounting Type	Output Type	Package / Case	Package Width	Package Length
Torex Semiconductor Ltd XC6216B792MR-G	9 µA	Positive	Enable	1.15 V	30 dB	SOT-25	Over Current Over Temperature	85 °C	-40 °C	28 V	7.9 V	150 mA	1	Surface Mount	Fixed
Torex Semiconductor Ltd XC6216B982PR-G	9 µA	Positive	Enable	0.95 V	30 dB	SOT-89-5	Over Current Over Temperature	85 °C	-40 °C	28 V	9.8 V	150 mA	1	Surface Mount	Fixed	SOT-89-5/6
Torex Semiconductor Ltd XC6216BA02PR-G	9 µA	Positive	Enable	0.95 V	30 dB	SOT-89-5	Over Current Over Temperature	85 °C	-40 °C	28 V	10 V	150 mA	1	Surface Mount	Fixed	SOT-89-5/6
Torex Semiconductor Ltd XC6216D522MR-G	9 µA	Positive		1.3 V	30 dB	SOT-23	Over Current Over Temperature	85 °C	-40 °C	28 V	5.2 V	150 mA	1	Surface Mount	Fixed	SC-59 SOT-23-3 TO-236-3
Torex Semiconductor Ltd XC6216B702ER-G	9 µA	Positive	Enable	1.15 V	30 dB	6-USPC	Over Current Over Temperature	85 °C	-40 °C	28 V	7 V	150 mA	1	Surface Mount	Fixed	6-UFDFN Exposed Pad	2 mm	1.8 mm
Torex Semiconductor Ltd XC6216D232JR-G	9 µA	Positive		2.2 V	30 dB	TO-252	Over Current Over Temperature	85 °C	-40 °C	28 V	2.3 V	100 mA	1	Surface Mount	Fixed	DPAK (2 Leads + Tab) SC-63 TO-252-3
Torex Semiconductor Ltd XC6216D672PR-G	9 µA	Positive		1.15 V	30 dB	SOT-89	Over Current Over Temperature	85 °C	-40 °C	28 V	6.7 V	150 mA	1	Surface Mount	Fixed	TO-243AA
Torex Semiconductor Ltd XC6216D432JR-G	9 µA	Positive		1.5 V	30 dB	TO-252	Over Current Over Temperature	85 °C	-40 °C	28 V	4.3 V	150 mA	1	Surface Mount	Fixed	DPAK (2 Leads + Tab) SC-63 TO-252-3
Torex Semiconductor Ltd XC6216B462PR-G	9 µA	Positive	Enable	1.5 V	30 dB	SOT-89-5	Over Current Over Temperature	85 °C	-40 °C	28 V	4.6 V	150 mA	1	Surface Mount	Fixed	SOT-89-5/6
Torex Semiconductor Ltd XC6216B4128R-G	9 µA	Positive	Enable	1.5 V	30 dB	USP-6B06	Over Current Over Temperature	85 °C	-40 °C	28 V	4.1 V	150 mA	1	Surface Mount	Fixed	6-XFDFN Exposed Pad
