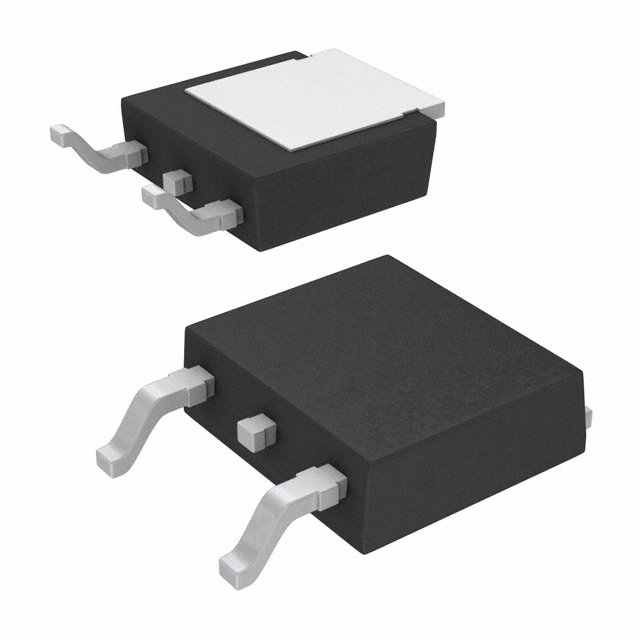

AIHD06N60RFATMA1

Active

Infineon Technologies

IC DISCRETE 600V TO252-3

Search across all available documentation for this part.

Active

Infineon Technologies

IC DISCRETE 600V TO252-3

Technical Specifications

Parameters and characteristics for this part

Specification	AIHD06N60RFATMA1

Current - Collector (Ic) (Max) [Max]	12 A
IGBT Type	Trench Field Stop
Mounting Type	Surface Mount
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power - Max [Max]	100 W
Supplier Device Package	PG-TO252-3-313
Switching Energy [custom]	90 µJ
Switching Energy [custom]	90 µJ
Td (on/off) @ 25°C	105 ns
Td (on/off) @ 25°C	8 ns
Vce(on) (Max) @ Vge, Ic	2.5 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Package / Case	IGBT Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Switching Energy [custom]	Switching Energy [custom]	Td (on/off) @ 25°C	Td (on/off) @ 25°C	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Current - Collector (Ic) (Max) [Max]	Switching Energy	Td (on/off) @ 25°C
Infineon Technologies AIHD06N60RFATMA1	DPAK (2 Leads + Tab) SC-63 TO-252-3	Trench Field Stop	-40 C	175 °C	PG-TO252-3-313	90 µJ	90 µJ	105 ns	8 ns	2.5 V	100 W	600 V	Surface Mount	12 A
Infineon Technologies AIHD06N60RATMA1	DPAK (2 Leads + Tab) SC-63 TO-252-3	Trench Field Stop	-40 C	175 °C	PG-TO252-3-313					2.1 V	100 W	600 V	Surface Mount	12 A	110 µJ 220 µJ	12 ns 127 ns
