6280-5SG-318

Active

Conxall/Switchcraft

CONN PLUG FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 5POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	6280-5SG-318	6280-5SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening [Max] [custom]	0.2 in	0.2 in
Cable Opening [Max] [custom]	5.08 mm	5.08 mm
Cable Opening [Min] [custom]	4.57 mm	4.57 mm
Cable Opening [Min] [custom]	0.18 in	0.18 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

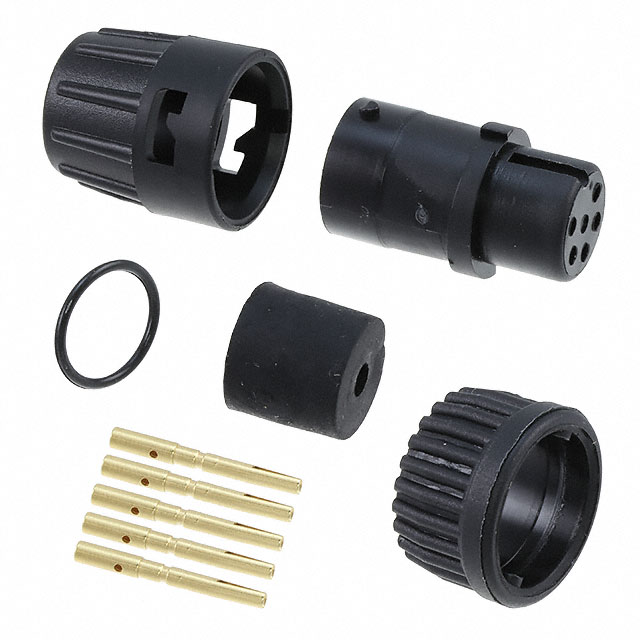

CONN PLUG FMALE 5POS GOLD CRIMP

Part	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Backshell Material, Plating	Contact Finish - Mating	Contact Material	Shielding	Connector Type	Voltage Rating	Orientation	Color	Mounting Type	Fastening Type	Termination	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Features	Applications	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 6280-5SG-311	2.29 mm	0.09 in, 0.14 in	3.56 mm	Varies by Wire Gauge	Nylon, Polyamide (PA)	Gold	Brass	Unshielded	Female Sockets, Plug	600 V	Keyed	Black	Free Hanging (In-Line)	Bayonet Lock	Crimp	Weathertight	-40 °C	115 °C	Plastic	Backshell	Automotive, Communication Systems, Instrumentation
Conxall/Switchcraft 6280-5SG-318				Varies by Wire Gauge	Nylon, Polyamide (PA)	Gold	Brass	Unshielded	Female Sockets, Plug	600 V	Keyed	Black	Free Hanging (In-Line)	Bayonet Lock	Crimp	Weathertight	-40 °C	115 °C	Plastic	Backshell	Automotive, Communication Systems, Instrumentation	4.57 mm	0.18 in	0.2 in	5.08 mm
