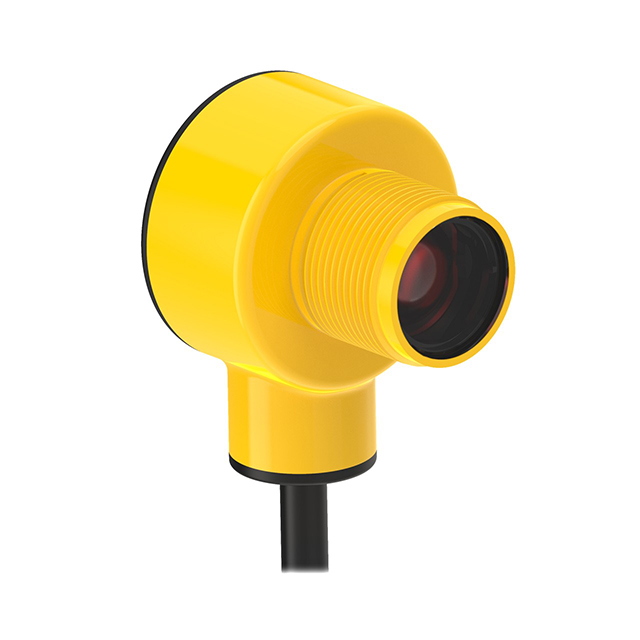

T18-2VPFF50IR-2M

Active

BANNER ENGINEERING

T18-2 SERIES: IR FIXED FIELD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T18-2VPFF50IR-2M

Active

BANNER ENGINEERING

T18-2 SERIES: IR FIXED FIELD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T18-2VPFF50IR-2M

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IEC IP68, IEC IP67, IEC IP69K
Light Source	Infrared LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON
Response Time	1.5 ms
Sensing Distance	50 mm
Sensing Distance	1.969 in
Sensing Method	Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

T18-2V Series

Part	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance	Connection Method	Output Configuration	Response Time	Cable Length	Cable Length	Light Source
BANNER ENGINEERING T18-2VNFF200-2M	Background Suppression	-40 °C	70 °C	IEC IP67 IEC IP68 IEC IP69K	30 VDC	10 VDC	200 mm	7.874 "	Cable	NPN - Dark-ON/Light-ON	1.5 ms	78.74 in	2 m	Red LED
BANNER ENGINEERING T18-2VNDL-2M	Diffuse	-40 °C	70 °C	IEC IP67 IEC IP68 IEC IP69K	30 VDC	10 VDC	750 mm	29.528 in	Cable	NPN - Dark-ON/Light-ON	1.5 ms	78.74 in	2 m	Red LED
BANNER ENGINEERING T18-2VPLPC-2M	Polarized Retroreflective	-40 °C	70 °C	IEC IP67 IEC IP68 IEC IP69K	30 VDC	10 VDC	6 m	236.22 in	Cable	PNP - Dark-ON/Light-ON	1.5 ms	78.74 in	2 m	Red LED
BANNER ENGINEERING T18-2VNLP-2M	Polarized Retroreflective	-40 °C	70 °C	IEC IP67 IEC IP68 IEC IP69K	30 VDC	10 VDC	6 m	236.22 in	Cable	NPN - Dark-ON/Light-ON	1.5 ms	78.74 in	2 m	Red LED
BANNER ENGINEERING T18-2VPFF100-2M	Background Suppression	-40 °C	70 °C	IEC IP67 IEC IP68 IEC IP69K	30 VDC	10 VDC	100 mm	3.937 in	Cable	PNP - Dark-ON/Light-ON	1.5 ms	78.74 in	2 m	Red LED
BANNER ENGINEERING T18-2VPRL-2M	Through-Beam	-40 °C	70 °C	IEC IP67 IEC IP68 IEC IP69K	30 VDC	10 VDC	25 m	82.02 ft	Cable	PNP - Dark-ON/Light-ON	1.5 ms	78.74 in	2 m	Red LED
BANNER ENGINEERING T18-2VPLPC-Q8	Polarized Retroreflective	-40 °C	70 °C	IEC IP67 IEC IP69K NEMA 6P	30 VDC	10 VDC	6 m	236.22 in	Connector	PNP - Dark-ON/Light-ON - Selectable	1.5 ms			Red (624nm)
BANNER ENGINEERING T18-2VNFF100-Q8	Background Suppression	-40 °C	70 °C	IEC IP67 IP69K NEMA 6P	30 VDC	10 VDC	100 mm	3.937 in	Connector		1.5 ms			Red (624nm)
BANNER ENGINEERING T18-2VPFF50IR-2M	Background Suppression	-40 °C	70 °C	IEC IP67 IEC IP68 IEC IP69K	30 VDC	10 VDC	50 mm	1.969 in	Cable	PNP - Dark-ON/Light-ON	1.5 ms	78.74 in	2 m	Infrared LED
BANNER ENGINEERING T18-2VNRL-2M	Through-Beam	-40 °C	70 °C	IEC IP67 IEC IP68 IEC IP69K	30 VDC	10 VDC	25 m	82.02 ft	Cable	NPN - Dark-ON/Light-ON	1.5 ms	78.74 in	2 m	Red LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 126.00
Newark	Each	1	$ 126.00

Description

General part information

T18-2V Series

Background Suppression Optical Sensor 1.969" (50mm) PNP - Dark-ON/Light-ON
