796636-4

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 4POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

796636-4

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 4POS 5.08MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.81
		10	$ 1.30
		25	$ 1.13
		50	$ 1.03
		150	$ 0.89
		300	$ 0.83
		600	$ 0.77
		1050	$ 0.77

Description

General part information

796636 Series

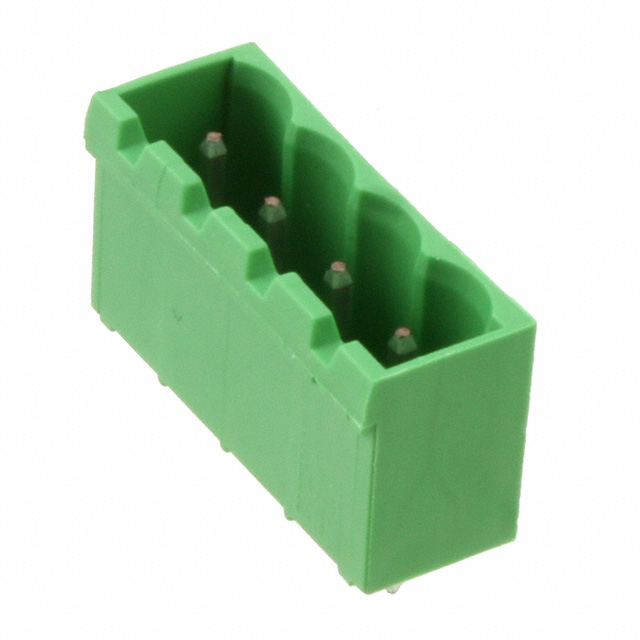

4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole

Documents

Technical documentation and resources

No documents available

Specification	796636-4	796636 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Header Orientation	Vertical	Vertical
Insulation Height	0.472 in	0.472 in
Insulation Height	12 mm	12 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	4	4 - 24
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	4	4 - 20
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

Part

Voltage - UL

Contact Material

Number of Levels

Contact Tail Length

Type

Insulation Height

Material Flammability Rating

Operating Temperature [Min]

Operating Temperature [Max]

Color

Termination Style

Number of Positions

Mounting Type

Header Orientation

Pitch [x]

Contact Mating Finish

Positions Per Level

TE Connectivity AMP Connectors

2-796636-4

300 V

Copper Alloy

3.5 mm

0.138 in

Header, Male Pins, Shrouded (4 Side)

0.472 in

12 mm

UL94 V-0

-40 °C

110 °C

Green

Solder

Through Hole

Vertical

0.2 in

5.08 mm

Tin

TE Connectivity AMP Connectors

1-796636-9

300 V

Copper Alloy

3.5 mm

0.138 in

Header, Male Pins, Shrouded (4 Side)

0.472 in

12 mm

UL94 V-0

-40 °C

110 °C

Green

Solder

Through Hole

Vertical

0.2 in

5.08 mm

Tin

TE Connectivity AMP Connectors

2-796636-8

300 V

Copper Alloy

3.5 mm

0.138 in

Header, Male Pins, Shrouded (4 Side)

0.472 in

12 mm

UL94 V-0

-40 °C

110 °C

Green

Solder

Through Hole

Vertical

0.2 in

5.08 mm

Tin

TE Connectivity AMP Connectors

1-796636-0

300 V

Copper Alloy

3.5 mm

0.138 in

Header, Male Pins, Shrouded (4 Side)

0.472 in

12 mm

UL94 V-0

-40 °C

110 °C

Green

Solder

Through Hole

Vertical

0.2 in

5.08 mm

Tin

TE Connectivity AMP Connectors

796636-4

300 V

Copper Alloy

3.5 mm

0.138 in

Header, Male Pins, Shrouded (4 Side)

0.472 in

12 mm

UL94 V-0

-40 °C

110 °C

Green

Solder

Through Hole

Vertical

0.2 in

5.08 mm

Tin

TE Connectivity AMP Connectors

1-796636-3

300 V

Copper Alloy

3.5 mm

0.138 in

Header, Male Pins, Shrouded (4 Side)

0.472 in

12 mm

UL94 V-0

-40 °C

110 °C

Green

Solder

Through Hole

Vertical

0.2 in

5.08 mm

Tin

TE Connectivity AMP Connectors

796636-9

300 V

Copper Alloy

3.5 mm

0.138 in

Header, Male Pins, Shrouded (4 Side)

0.472 in

12 mm

UL94 V-0

-40 °C

110 °C

Green

Solder

Through Hole

Vertical

0.2 in

5.08 mm

Tin

TE Connectivity AMP Connectors

796636-8

300 V

Copper Alloy

3.5 mm

0.138 in

Header, Male Pins, Shrouded (4 Side)

0.472 in

12 mm

UL94 V-0

-40 °C

110 °C

Green

Solder

Through Hole

Vertical

0.2 in

5.08 mm

Tin

TE Connectivity AMP Connectors

1-796636-1

300 V

Copper Alloy

3.5 mm

0.138 in

Header, Male Pins, Shrouded (4 Side)

0.472 in

12 mm

UL94 V-0

-40 °C

110 °C

Green

Solder

Through Hole

Vertical

0.2 in

5.08 mm

Tin

TE Connectivity AMP Connectors

796636-7

300 V

Copper Alloy

3.5 mm

0.138 in

Header, Male Pins, Shrouded (4 Side)

0.472 in

12 mm

UL94 V-0

-40 °C

110 °C

Green

Solder

Through Hole

Vertical

0.2 in

5.08 mm

Tin

Part	Voltage - UL	Contact Material	Number of Levels	Contact Tail Length	Contact Tail Length	Type	Insulation Height	Insulation Height	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Termination Style	Number of Positions	Mounting Type	Header Orientation	Pitch [x]	Pitch [x]	Contact Mating Finish	Positions Per Level
TE Connectivity AMP Connectors 2-796636-4	300 V	Copper Alloy	1	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.472 in	12 mm	UL94 V-0	-40 °C	110 °C	Green	Solder	24	Through Hole	Vertical	0.2 in	5.08 mm	Tin
TE Connectivity AMP Connectors 1-796636-9	300 V	Copper Alloy	1	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.472 in	12 mm	UL94 V-0	-40 °C	110 °C	Green	Solder	19	Through Hole	Vertical	0.2 in	5.08 mm	Tin	19
TE Connectivity AMP Connectors 2-796636-8	300 V	Copper Alloy	1	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.472 in	12 mm	UL94 V-0	-40 °C	110 °C	Green	Solder	15	Through Hole	Vertical	0.2 in	5.08 mm	Tin	15
TE Connectivity AMP Connectors 1-796636-0	300 V	Copper Alloy	1	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.472 in	12 mm	UL94 V-0	-40 °C	110 °C	Green	Solder	10	Through Hole	Vertical	0.2 in	5.08 mm	Tin	10
TE Connectivity AMP Connectors 796636-4	300 V	Copper Alloy	1	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.472 in	12 mm	UL94 V-0	-40 °C	110 °C	Green	Solder	4	Through Hole	Vertical	0.2 in	5.08 mm	Tin	4
TE Connectivity AMP Connectors 1-796636-3	300 V	Copper Alloy	1	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.472 in	12 mm	UL94 V-0	-40 °C	110 °C	Green	Solder	13	Through Hole	Vertical	0.2 in	5.08 mm	Tin	13
TE Connectivity AMP Connectors 796636-9	300 V	Copper Alloy	1	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.472 in	12 mm	UL94 V-0	-40 °C	110 °C	Green	Solder	9	Through Hole	Vertical	0.2 in	5.08 mm	Tin	9
TE Connectivity AMP Connectors 796636-8	300 V	Copper Alloy	1	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.472 in	12 mm	UL94 V-0	-40 °C	110 °C	Green	Solder	8	Through Hole	Vertical	0.2 in	5.08 mm	Tin	8
TE Connectivity AMP Connectors 1-796636-1	300 V	Copper Alloy	1	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.472 in	12 mm	UL94 V-0	-40 °C	110 °C	Green	Solder	11	Through Hole	Vertical	0.2 in	5.08 mm	Tin	11
TE Connectivity AMP Connectors 796636-7	300 V	Copper Alloy	1	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.472 in	12 mm	UL94 V-0	-40 °C	110 °C	Green	Solder	7	Through Hole	Vertical	0.2 in	5.08 mm	Tin	7
