TERM BLOCK HDR 8POS VERT 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796636-8

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 8POS VERT 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.89
		10	$ 2.58
		100	$ 2.29
		1000	$ 1.88
		5000	$ 1.63

Description

General part information

796636 Series

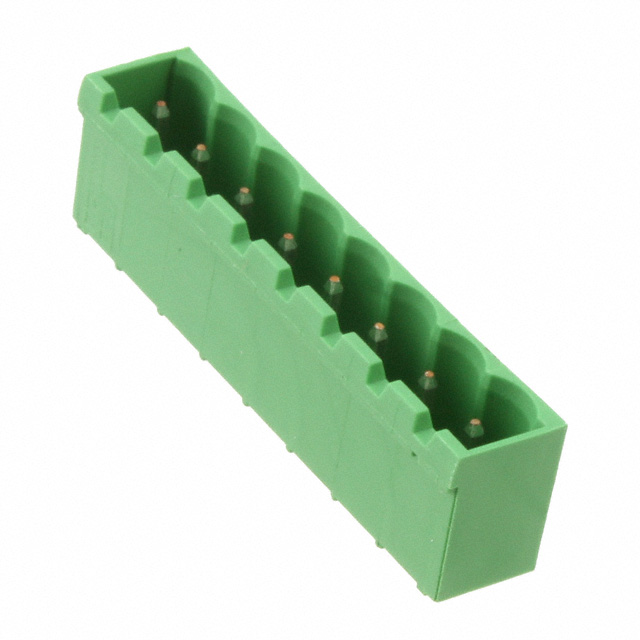

8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
