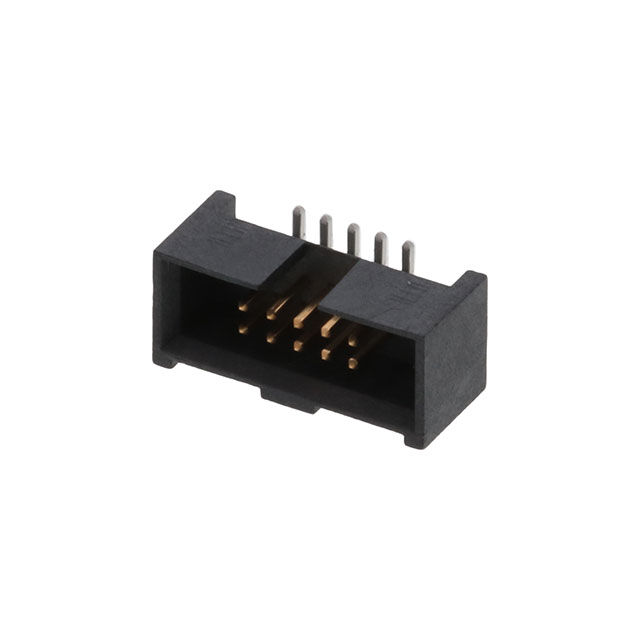

SHF-105-01-L-D-SM-K-TR

Active

Samtec Inc.

CONN HEADER SMD 10POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSHF-102-01-L-D-SM Datasheet 02 Datasheet +1

SHF-105-01-L-D-SM-K-TR

Active

Samtec Inc.

CONN HEADER SMD 10POS 1.27MM

Deep-Dive with AI

DocumentsSHF-102-01-L-D-SM Datasheet 02 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SHF-105-01-L-D-SM-K-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	5.33 mm
Insulation Height	0.21 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

SHF-105 Series

Part	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Fastening Type	Contact Finish - Post	Style	Material Flammability Rating	Number of Positions	Mounting Type	Termination	Number of Rows	Contact Material	Number of Positions Loaded	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Shrouding	Contact Finish - Mating	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Insulation Material	Contact Type	Contact Length - Post [x]
Samtec Inc. SHF-105-01-F-D-RA-TR	0.05 in	1.27 mm	-55 °C	125 °C	Keying Slot	Push-Pull	Tin	Board to Cable/Wire	UL94 V-0	10	Through Hole Right Angle	Solder	2	Phosphor Bronze	All	Black	0.05 in	1.27 mm	Header	3 µin	0.076 µm	Square	Shrouded - 4 Wall	Gold	3 A	2.16 mm	0.085 in	3.05 mm	0.12 in	5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	Male Pin
Samtec Inc. SHF-105-01-S-D-SM-LC-K-TR	0.05 in	1.27 mm	-55 °C	125 °C	Board Lock Keying Slot Pick and Place	Push-Pull	Tin	Board to Cable/Wire	UL94 V-0	10	Surface Mount	Solder	2	Phosphor Bronze	All	Black	0.05 in	1.27 mm	Header			Square	Shrouded - 4 Wall	Gold	3 A			3.05 mm	0.12 in	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	Male Pin
Samtec Inc. SHF-105-01-L-D-SM	0.05 in	1.27 mm	-55 °C	125 °C	Keying Slot	Push-Pull	Tin	Board to Cable/Wire	UL94 V-0	10	Surface Mount	Solder	2	Phosphor Bronze	All	Black	0.05 in	1.27 mm	Header	10 çin	0.25 çm	Square	Shrouded - 4 Wall	Gold	3 A			3.05 mm	0.12 in	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	Male Pin
Samtec Inc. SHF-105-01-S-D-SM-K-TR	0.05 in	1.27 mm	-55 °C	125 °C	Keying Slot Pick and Place	Push-Pull	Tin	Board to Cable/Wire	UL94 V-0	10	Surface Mount	Solder	2	Phosphor Bronze	All	Black	0.05 in	1.27 mm	Header			Square	Shrouded - 4 Wall	Gold	3 A			3.05 mm	0.12 in	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	Male Pin
Samtec Inc. SHF-105-01-F-D-TH-LC	0.05 in	1.27 mm	-55 °C	125 °C	Board Lock Keying Slot	Push-Pull	Tin	Board to Cable/Wire	UL94 V-0	10	Through Hole	Solder	2	Phosphor Bronze	All	Black	0.05 in	1.27 mm	Header	3 µin	0.076 µm	Square	Shrouded - 4 Wall	Gold	3 A	1.91 mm		3.05 mm	0.12 in	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	Male Pin	0.075 in
Samtec Inc. SHF-105-01-F-D-TH-TR	0.05 in	1.27 mm	-55 °C	125 °C	Keying Slot	Push-Pull	Tin	Board to Cable/Wire	UL94 V-0	10	Through Hole	Solder	2	Phosphor Bronze	All	Black	0.05 in	1.27 mm	Header	3 µin	0.076 µm	Square	Shrouded - 4 Wall	Gold	3 A	1.91 mm		3.05 mm	0.12 in	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	Male Pin	0.075 in
Samtec Inc. SHF-105-01-F-D-SM-LC-K-TR	0.05 in	1.27 mm	-55 °C	125 °C	Board Lock Keying Slot Pick and Place	Push-Pull	Tin	Board to Cable/Wire	UL94 V-0	10	Surface Mount	Solder	2	Phosphor Bronze	All	Black	0.05 in	1.27 mm	Header	3 µin	0.076 µm	Square	Shrouded - 4 Wall	Gold	3 A			3.05 mm	0.12 in	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	Male Pin
Samtec Inc. SHF-105-01-S-D-SM-TR	0.05 in	1.27 mm	-55 °C	125 °C	Keying Slot	Push-Pull	Tin	Board to Cable/Wire	UL94 V-0	10	Surface Mount	Solder	2	Phosphor Bronze	All	Black	0.05 in	1.27 mm	Header			Square	Shrouded - 4 Wall	Gold	3 A			3.05 mm	0.12 in	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	Male Pin
Samtec Inc. SHF-105-01-L-D-SM-K-TR	0.05 in	1.27 mm	-55 °C	125 °C	Keying Slot Pick and Place	Push-Pull	Tin	Board to Cable/Wire	UL94 V-0	10	Surface Mount	Solder	2	Phosphor Bronze	All	Black	0.05 in	1.27 mm	Header	10 çin	0.25 çm	Square	Shrouded - 4 Wall	Gold	3 A			3.05 mm	0.12 in	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	Male Pin
Samtec Inc. SHF-105-01-L-D-RA-TR	0.05 in	1.27 mm	-55 °C	125 °C	Keying Slot	Push-Pull	Tin	Board to Cable/Wire	UL94 V-0	10	Through Hole Right Angle	Solder	2	Phosphor Bronze	All	Black	0.05 in	1.27 mm	Header	10 çin	0.25 çm	Square	Shrouded - 4 Wall	Gold	3 A	2.16 mm	0.085 in	3.05 mm	0.12 in	5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.82
		50	$ 3.12
		100	$ 2.65
	Digi-Reel®	1	$ 3.82
		50	$ 3.12
		100	$ 2.65
	Tape & Reel (TR)	450	$ 2.65
		900	$ 2.35
		1350	$ 1.95
		2250	$ 1.82

Description

General part information

SHF-105 Series

Connector Header Surface Mount 10 position 0.050" (1.27mm)

Documents

Technical documentation and resources

SHF-102-01-L-D-SM Datasheet 02

Datasheet

SHF-105-01-L-D-SM-K-TR

Deep-Dive with AI

SHF-105-01-L-D-SM-K-TR

Deep-Dive with AI

Technical Specifications

SHF-105 Series

Pricing

Description

SHF-105 Series

Documents

SHF-102-01-L-D-SM Datasheet 02

Datasheet

Shrouded Terminal Strip, 0.050" pitch

SHF-105 Series
