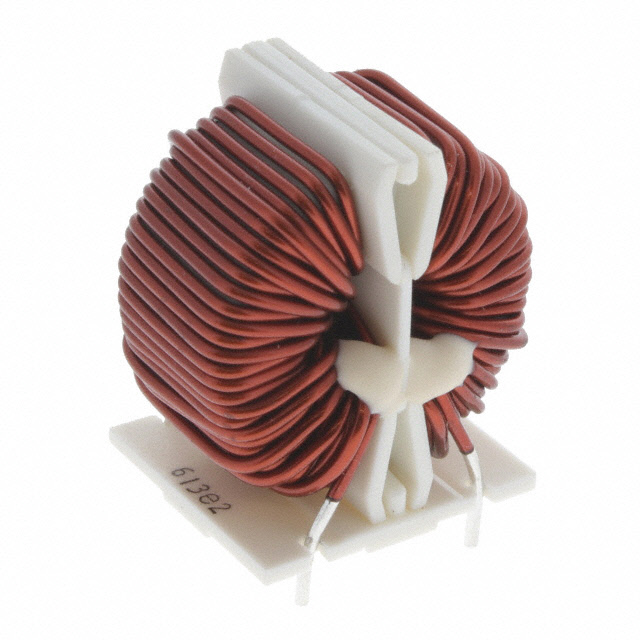

SCR22-060-1R0A075J

Active

KEMET

CHOKE, COMMON MODE, 7.5 MH, 6 A, 250 VAC, RADIAL LEADED, SCR22 SERIES

Search across all available documentation for this part.

Active

KEMET

CHOKE, COMMON MODE, 7.5 MH, 6 A, 250 VAC, RADIAL LEADED, SCR22 SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Height (Max) [Max] [z]	Height (Max) [Max] [z]	DC Resistance (DCR) (Max) [Max]	Number of Lines	Package / Case	Package / Case	Inductance @ Frequency	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Filter Type	Voltage Rating - AC	Height (Max)	Height (Max)
KEMET SCR22-060-1R0A075JH	29 mm	1.142 in	42 mOhm	2	Horizontal	4 Lead	7.5 mH	250 V	120 °C	-25 °C	6 A	23 mm	29 mm	0.906 in	1.142 inches	Through Hole	Power Line	250 V
KEMET SCR22-060-1R0A075J			42 mOhm	2	Vertical	4 Lead	7.5 mH	250 V	120 °C	-25 °C	6 A	23 mm	29 mm	0.906 in	1.142 inches	Through Hole	Power Line	250 V	24 mm	0.945 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 6A DCR 42mOhm
