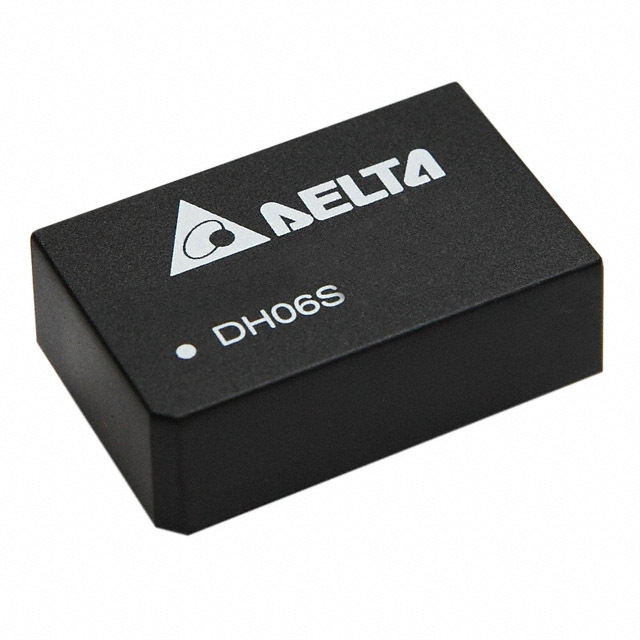

DH06D4805A

Active

DC DC CONVERTER +/-5V 6W

Active

DC DC CONVERTER +/-5V 6W

Description

General part information

Isolated Module DC DC Converter 2 Output 5V -5V 500mA, 500mA 36V - 75V Input

Parameters and characteristics for this part

Part	Efficiency	Power (Watts)	Mounting Type	Voltage - Output 2	Package Leads	Package Name	Current - Output (Max)	Voltage - Input (Min)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Applications	Voltage - Input (Max)	Features	Type	Voltage - Output 1	Operating Temperature (Min)	Operating Temperature (Max)	Number of Outputs	Voltage - Isolation
Delta Electronics DH06D4805A	80 %	6 W	Through Hole	-5 V	8 Leads	24-DIP Module	500 mA	36 V	0.4 in	1.25 in	0.8 in	Medical	75 V	OCP SCP UVLO	Isolated Module	5 V	-40 °C	85 °C	2	1500 Vrns
Delta Electronics DH06D1215A	82 %	6 W	Through Hole	-15 V	8 Leads	24-DIP Module	200 mA	9 V	0.4 in	1.25 in	0.8 in	Medical	18 V	OCP SCP UVLO	Isolated Module	15 V	-40 °C	85 °C	2	1500 Vrns
Delta Electronics DH06S4824A	84 %	6 W	Through Hole		8 Leads	24-DIP Module	250 mA	36 V	0.4 in	1.25 in	0.8 in	Medical	75 V	OCP SCP UVLO	Isolated Module	24 V	-40 °C	85 °C	1	1500 Vrns
Delta Electronics DH06D4815A	84 %	6 W	Through Hole	-15 V	8 Leads	24-DIP Module	200 mA	36 V	0.4 in	1.25 in	0.8 in	Medical	75 V	OCP SCP UVLO	Isolated Module	15 V	-40 °C	85 °C	2	1500 Vrns
Delta Electronics DH06D2405A	80 %	6 W	Through Hole	-5 V	8 Leads	24-DIP Module	500 mA	18 V	0.4 in	1.25 in	0.8 in	Medical	36 V	OCP SCP UVLO	Isolated Module	5 V	-40 °C	85 °C	2	1500 Vrns
Delta Electronics DH06D2412A	84 %	6 W	Through Hole	-12 V	8 Leads	24-DIP Module	250 mA	18 V	0.4 in	1.25 in	0.8 in	Medical	36 V	OCP SCP UVLO	Isolated Module	12 V	-40 °C	85 °C	2	1500 Vrns
