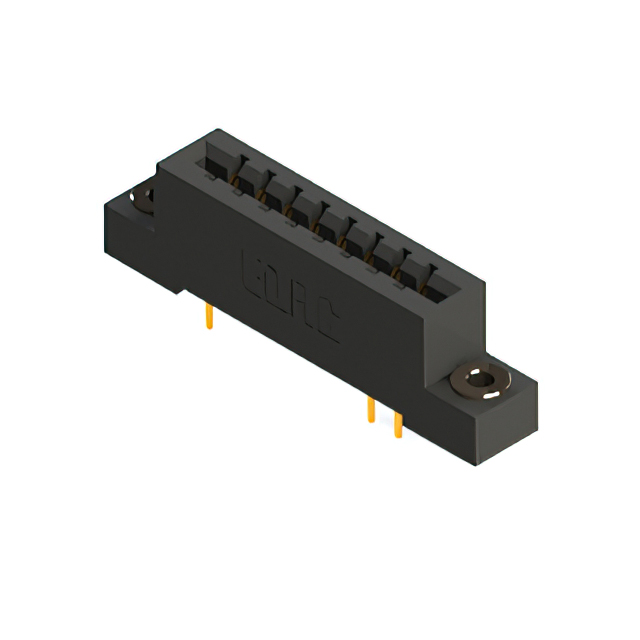

887-016-523-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 16POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-016-523-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 16POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-016-523-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	16
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

887-016 Series

...

Part	Contact Type	Features	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Color	Card Type	Termination	Contact Material	Material - Insulation	Gender	Number of Rows	Read Out	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 887-016-555-201	Cantilever	Card Extender	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	0.156 in	3.96 mm	10 Áin	0.25 Ám	2	8	8	8	Black	Non Specified - Dual Edge	Solder	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	2	Dual	16	125 °C	-40 °C	Gold
EDAC Inc. 887-016-558-101	Cantilever		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	0.156 in	3.96 mm	10 Áin	0.25 Ám	1				Black	Non Specified - Single Edge	Solder	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	1	Single	16	125 °C	-40 °C	Gold	16
EDAC Inc. 887-016-542-607	Cantilever		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm	10 Áin	0.25 Ám	1				Black	Non Specified - Single Edge	Wire Wrap	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	1	Single	16	125 °C	-40 °C	Gold	16	M3 Threaded Insert Top Mount Opening
EDAC Inc. 887-016-541-107	Cantilever		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm	10 Áin	0.25 Ám	1				Black	Non Specified - Single Edge	Wire Wrap	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	1	Single	16	125 °C	-40 °C	Gold	16	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 887-016-540-104	Cantilever		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm	10 Áin	0.25 Ám	1				Black	Non Specified - Single Edge	Wire Wrap	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	1	Single	16	125 °C	-40 °C	Gold	16	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in
EDAC Inc. 887-016-542-603	Cantilever		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm	10 Áin	0.25 Ám	1				Black	Non Specified - Single Edge	Wire Wrap	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	1	Single	16	125 °C	-40 °C	Gold	16	Floating Bobbin Top Mount Opening	2.95 mm	0.116 in
EDAC Inc. 887-016-524-204	Cantilever		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm	10 Áin	0.25 Ám	2	8	8	8	Black	Non Specified - Dual Edge	Solder	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	2	Dual	16	125 °C	-40 °C	Gold		Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in
EDAC Inc. 887-016-541-808	Cantilever		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm	10 Áin	0.25 Ám	2	8	8	8	Black	Non Specified - Dual Edge	Wire Wrap	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	2	Dual	16	125 °C	-40 °C	Gold		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 887-016-523-203	Cantilever		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm	10 Áin	0.25 Ám	2	8	8	8	Black	Non Specified - Dual Edge	Solder	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	2	Dual	16	125 °C	-40 °C	Gold		Floating Bobbin Flush Mount	2.95 mm	0.116 in
EDAC Inc. 887-016-521-202	Cantilever		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.156 in	3.96 mm	10 Áin	0.25 Ám	2	8	8	8	Black	Non Specified - Dual Edge	Solder	Copper Alloy	Polyphenylene Sulfide (PPS)	Female	2	Dual	16	125 °C	-40 °C	Gold		Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 62.27
Newark	Each	1	$ 74.73
		100	$ 46.77
		250	$ 35.73
		500	$ 29.45
		1000	$ 24.38

Description

General part information

887-016 Series

16 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
