228AMVARFAMSCR

Active

CTS Electrocomponents

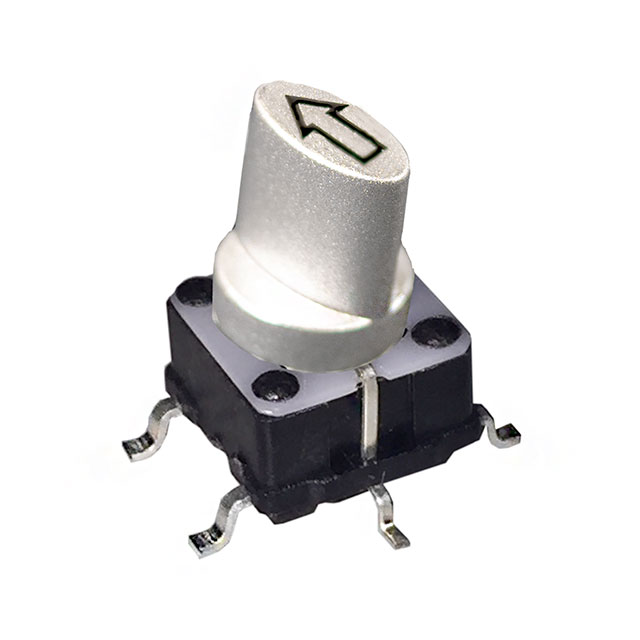

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

228AMVARFAMSCR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.27
		10	$ 1.84
		25	$ 1.70
		100	$ 1.49
	Digi-Reel®	1	$ 2.27
		10	$ 1.84
		25	$ 1.70
		100	$ 1.49
	Tape & Reel (TR)	1350	$ 1.19

Description

General part information

228AMVA Series

Tactile Switch SPST-NO Top Actuated Surface Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	228AMVARFAMSCR	228AMVA Series

Actuator Height off PCB, Vertical	14.4 mm	14.4 mm
Actuator Height off PCB, Vertical	-	7 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Oval Button	Oval Button, Round Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	Red, LED	Red, LED, Blue/Red, Amber/Red, Green/Red, Yellow, Blue, Amber/White, Amber, Green, White
Illumination Voltage (Nominal)	-	1.7 - 3 VDC
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Outline [x]	7.2 mm	7.2 mm
Outline [y]	6.8 mm	6.8 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	Gull Wing	Gull Wing

228AMVA Series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Outline [y]	Outline [x]	Termination Style	Illumination Type, Color	Actuator Orientation	Switch Function	Mounting Type	Actuator Height off PCB, Vertical	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Actuator Type	Contact Rating @ Voltage	Switch Travel	Circuit	Illumination	Illumination Voltage (Nominal)	Actuator Height off PCB, Vertical [z]
CTS Electrocomponents 228AMVARFAMSCR	6.8 mm	7.2 mm	Gull Wing	LED, Red	Top Actuated	Off-Mom	Surface Mount	14.4 mm	70 °C	-25 °C	100000 Cycles	Oval Button	0.05 A, 12 VDC	0.25 mm	SPST-NO	Illuminated
