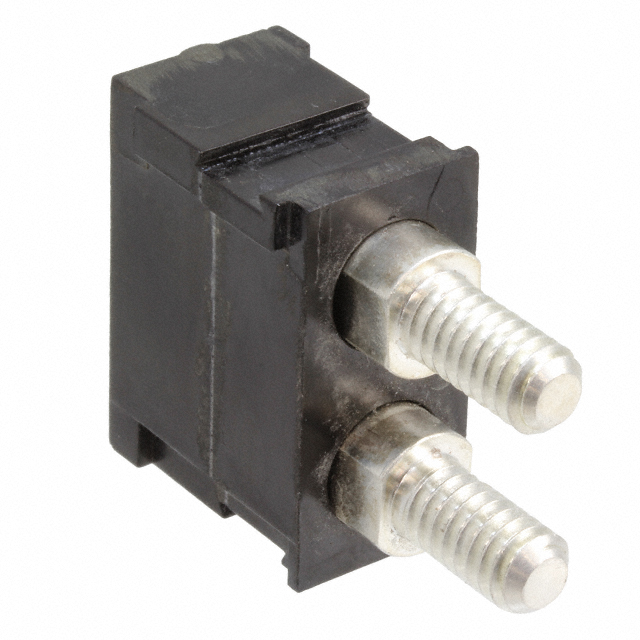

6648454-1
ActiveTE Connectivity Raychem Cable Protection
MODULE,DOMINO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6648454-1 |
|---|---|
| Connector Style | Hot-Plug |
| Connector Type | Receptacle, Female Sockets |
| Contact Layout, Typical | 2 Power |
| Current Rating (Amps) | 125 A |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Termination | Threaded |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 80 | $ 88.61 | |
Description
General part information
ELCON Domino Series
2 Position, Receptacle, Connector Assembly, Crimp, Wire-to-Wire, Gold (Au), UL 94V-0, 14.27 mm [.562 in] Centerline, Wire & Cable, Power, ELCON Domino
