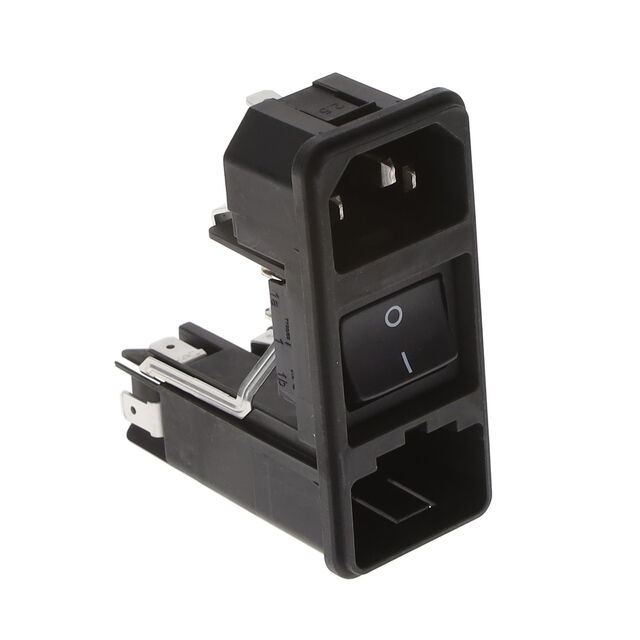

KD14.4101.109

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KD14.4101.109

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.09
		50	$ 22.65
		100	$ 19.16

Description

General part information

KD14.4101 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KD14.4101.109	KD14.4101 Series

Accomodates a Fuse	True	True
Approval Agency	CCC, UL, CSA, ENEC	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Features	Voltage Selector	Voltage Selector
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate	Drawer Sold Separate
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In, Flange
Panel Cutout Dimensions [x]	27.5 mm	27.5 mm
Panel Cutout Dimensions [y]	66.5 mm	66.5 mm
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Panel Thickness	-	2 mm
Panel Thickness	-	0.079 in
Panel Thickness [x]	2.5 mm	2.5 mm
Panel Thickness [x]	0.098 in	0.098 in
Switch Features	Switch On-Off	Switch On-Off
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

KD14.4101 Series

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Approval Agency	Switch Features	Connector Style	Voltage Rating - Appliance Inlet	Mounting Type	Panel Thickness [custom]	Panel Thickness [custom]	Ingress Protection	Termination	Termination	Current Rating - Appliance Inlet	Features	Material Flammability Rating	Filter Type	Fuse Holder, Drawer	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [x]	Panel Thickness [x]	Panel Thickness	Panel Thickness
SCHURTER Inc. KD14.4101.105	CCC, CSA, ENEC, UL	Switch On-Off	IEC 320-C14	250 VAC	Panel Mount, Snap-In	0.059 in	1.5 mm	IP40	0.189 ", 4.8 mm	Quick Connect	10 A	Voltage Selector	UL94 V-0	Unfiltered - Commercial	Drawer Sold Separate	Receptacle, Male Blades - Module	27.5 mm	66.5 mm
SCHURTER Inc. KD14.4101.307	CCC, CSA, ENEC, UL	Switch On-Off	IEC 320-C14	250 VAC				IP40			10 A		UL94 V-0	Unfiltered - Commercial	Drawer Sold Separate	Receptacle, Male Blades - Module	27.5 mm	66.5 mm
SCHURTER Inc. KD14.4101.151	CCC, CSA, ENEC, UL	Switch On-Off	IEC 320-C14	250 VAC	Flange, Panel Mount			IP40	0.189 ", 4.8 mm	Quick Connect	10 A	Voltage Selector	UL94 V-0	Unfiltered - Commercial	Drawer Sold Separate	Receptacle, Male Blades - Module	27.5 mm	66.5 mm
SCHURTER Inc. KD14.4101.109	CCC, CSA, ENEC, UL	Switch On-Off	IEC 320-C14	250 VAC	Panel Mount, Snap-In			IP40	0.189 ", 4.8 mm	Quick Connect	10 A	Voltage Selector	UL94 V-0	Unfiltered - Commercial	Drawer Sold Separate	Receptacle, Male Blades - Module	27.5 mm	66.5 mm	2.5 mm	0.098 in
SCHURTER Inc. KD14.4101.107	CCC, CSA, ENEC, UL	Switch On-Off	IEC 320-C14	250 VAC	Panel Mount, Snap-In			IP40	0.189 ", 4.8 mm	Quick Connect	10 A	Voltage Selector	UL94 V-0	Unfiltered - Commercial	Drawer Sold Separate	Receptacle, Male Blades - Module	27.5 mm	66.5 mm			2 mm	0.079 in
