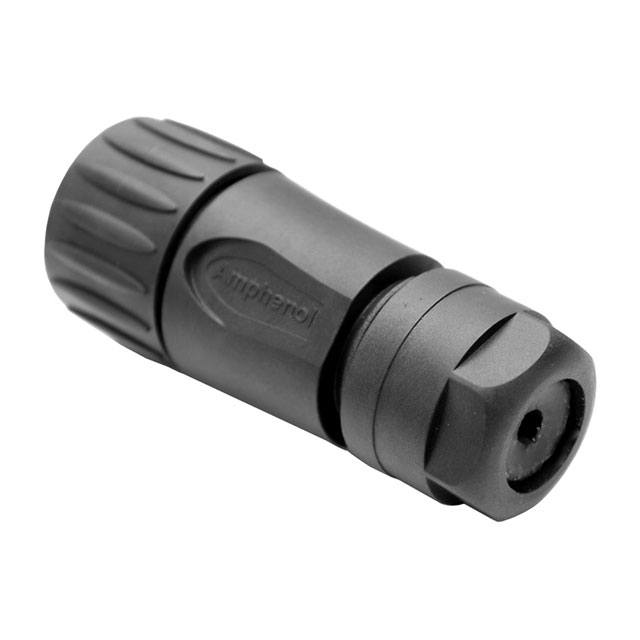

C01610D00601012

Active

Amphenol Tuchel Industrial

CONN PLG HSG FMALE 7POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLG HSG FMALE 7POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C01610D00601012	C01610D006 Series

Connector Type	Plug Housing	Plug Housing
Contact Shape	Circular	Circular
Contact Size	1.6 mm	1.6 mm
Contact Type	Crimp	Crimp
Features	Cable Clamp, Coupling Nut, Backshell	Coupling Nut, Backshell, Cable Clamp
Housing Color	Black, Blue	Black, Blue
Ingress Protection	IP67, IP65	IP67, IP65
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions [custom]	1	1
Number of Positions [custom]	6	6
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shielding	Unshielded	Unshielded
Type	For Female Sockets	For Female Sockets

CONN PLUG HSNG FMALE 7POS INLINE

Part	Number of Positions [custom]	Number of Positions [custom]	Shielding	Shell Material	Type	Connector Type	Contact Size	Contact Type	Mounting Type	Features	Orientation	Note	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Material Flammability Rating	Ingress Protection	Contact Shape
Amphenol Tuchel Industrial C01610D00600012	1	6	Unshielded	Polyamide (PA66), Nylon 6/6	For Female Sockets	Plug Housing	1.6 mm	Crimp	Free Hanging (In-Line)	Backshell, Coupling Nut	Keyed	Contacts Not Included	125 °C	-40 °C	Black, Blue	UL94 V-0	IP65, IP67	Circular
Amphenol Tuchel Industrial C01610D00601012	1	6	Unshielded	Polyamide (PA66), Nylon 6/6	For Female Sockets	Plug Housing	1.6 mm	Crimp	Free Hanging (In-Line)	Backshell, Cable Clamp, Coupling Nut	Keyed	Contacts Not Included	125 °C	-40 °C	Black, Blue	UL94 V-0	IP65, IP67	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 (6 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
