22AF0750

Active

Essentra Access Solutions

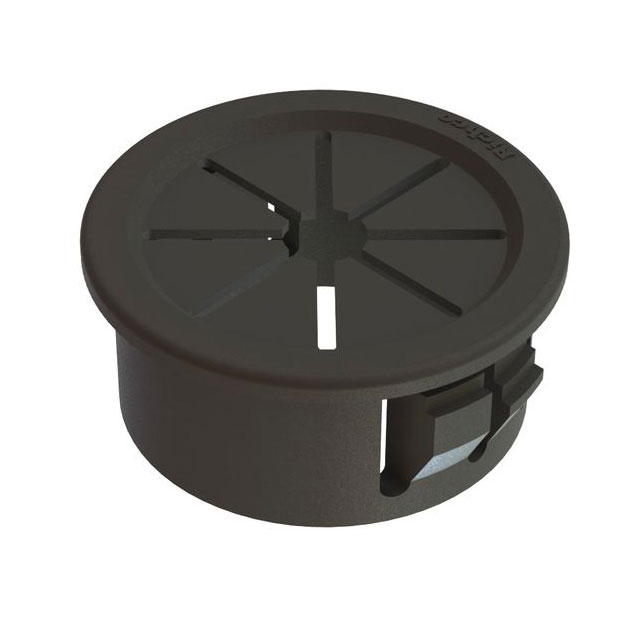

GROMMET, CABLE RETENTION, 0.5 ", NYLON 6.6 (POLYAMIDE 6.6), 0.75 ", 0.125 "

Search across all available documentation for this part.

Active

Essentra Access Solutions

GROMMET, CABLE RETENTION, 0.5 ", NYLON 6.6 (POLYAMIDE 6.6), 0.75 ", 0.125 "

Technical Specifications

Parameters and characteristics for this part

Specification	22AF0750

Bushing, Grommet Type	Bushing
Color	Black
Diameter - Inside [diameter]	0.5 in
Diameter - Inside [diameter]	12.7 mm
For Use With/Related Products	Wires, Cable
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Panel Cutout Dimensions [diameter]	0.75 in
Panel Cutout Dimensions [diameter]	19.05 mm
Panel Thickness	0.125 in
Panel Thickness	3.18 mm

Part	Material Flammability Rating	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	For Use With/Related Products	Panel Thickness	Panel Thickness	Bushing, Grommet Type	Material	Color	Diameter - Inside [diameter]	Diameter - Inside [diameter]
Essentra Access Solutions 22AF0750	UL94 V-2	0.75 in	19.05 mm	Cable Wires	0.125 in	3.18 mm	Bushing	Polyamide (PA66) Nylon 6/6	Black	0.5 in	12.7 mm
Essentra Access Solutions 22AF0625	UL94 V-2	0.625 in	15.88 mm	Cable Wires	0.125 in	3.18 mm	Bushing	Polyamide (PA66) Nylon 6/6	Black	0.437 in	11.1 mm
Essentra Access Solutions 22AF0812	UL94 V-2	0.812 in	20.62 mm	Cable Wires	0.125 in	3.18 mm	Bushing	Polyamide (PA66) Nylon 6/6	Black	0.5 in	12.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular - 0.750" (19.05mm) Bushing 0.500" (12.70mm) Black
