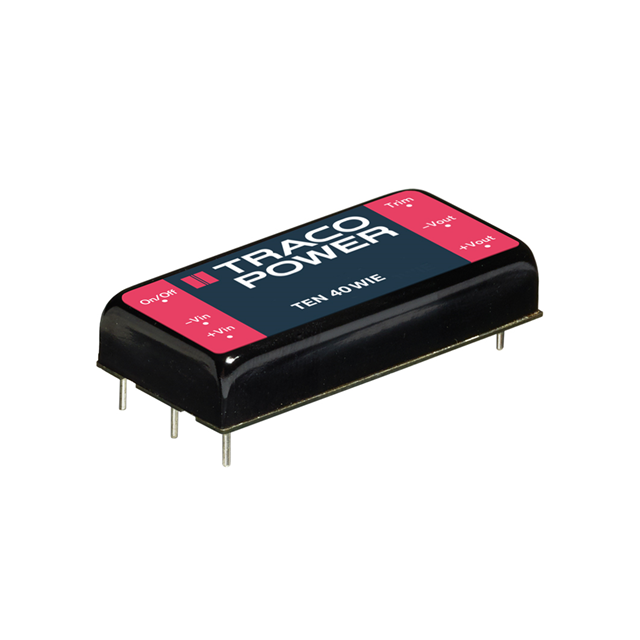

TEN 40-2412WIE

Active

Traco Power

DC DC CONVERTER 12V 40W

TEN 40-2412WIE

Active

Traco Power

DC DC CONVERTER 12V 40W

Description Specifications Series Pricing CAD Documents

Description

General part information

TEN 40 Series

Isolated Module DC DC Converter 1 Output 12V 3.333A 9V - 36V Input

Technical Specifications

Parameters and characteristics for this part

Specification	TEN 40-2412WIE

Applications	ITE (Commercial)
Approval Agency	CB, cURus
Current - Output (Max)	3.333 A
Efficiency	92 %
Features	Adjustable Output, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	6-DIP Module
Power (Watts)	40 W
Size / Dimension Height	0.4 in
Size / Dimension Length	2 in
Size / Dimension Width	1 in
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V

TEN 40 Series

Part	Voltage - Output 1	Features	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Voltage - Input (Min)	Voltage - Input (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Number of Outputs	Voltage - Isolation	Approval Agency	Efficiency	Mounting Type	Applications	Package / Case	Current - Output (Max)	Type	Power (Watts)	Voltage - Output 2	Package Name	Package Leads
Traco Power TEN 40-2412WIE	12 V	Adjustable Output Remote On/Off	1 in	2 in	0.4 in	9 V	36 V	-40 °C	85 °C	1	1.6 kV	CB cURus	92 %	Through Hole	ITE (Commercial)	6-DIP Module	3.333 A	Isolated Module	40 W
Traco Power TEN 40-4823E	15 V	Adjustable Output Remote On/Off	1 in	2 in	0.4 in	36 V	75 V	-40 °C	85 °C	2	1.6 kV	CB cURus	91 %	Through Hole	ITE (Commercial)	6-DIP Module	1.333 A	Isolated Module	40 W	-15 V
Traco Power TEN 40-1222	12 V	OCP OTP OVP Remote On/Off SCP UVLO	2 in	2 in	0.4 in	9 V	18 V	-40 °C	75 °C	2	1500 Vrns		85 %	Through Hole	ITE (Commercial)		1.67 A	Isolated Module	40 W	-12 V	9-DIP Module	8 Leads
Traco Power TEN 40-1213E	15 V	Adjustable Output Remote On/Off	1 in	2 in	0.4 in	9 V	18 V	-40 °C	85 °C	1	1.6 kV	CB cURus	91 %	Through Hole	ITE (Commercial)	6-DIP Module	2.666 A	Isolated Module	40 W
Traco Power TEN 40-2415E	24 V	Adjustable Output Remote On/Off	1 in	2 in	0.4 in	18 V	36 V	-40 °C	85 °C	1	1.6 kV	CB cURus	91 %	Through Hole	ITE (Commercial)	6-DIP Module	1.666 A	Isolated Module	40 W
Traco Power TEN 40-1225E	24 V	Adjustable Output Remote On/Off	1 in	2 in	0.4 in	9 V	18 V	-40 °C	85 °C	2	1.6 kV	CB cURus	91 %	Through Hole	ITE (Commercial)	6-DIP Module	833 mA	Isolated Module	40 W	-24 V
Traco Power TEN 40-1210E	3.3 V	Adjustable Output Remote On/Off	1 in	2 in	0.4 in	9 V	18 V	-40 °C	85 °C	1	1.6 kV	CB cURus	89 %	Through Hole	ITE (Commercial)	6-DIP Module	12.2 A	Isolated Module	40 W
Traco Power TEN 40-1211E	5 V	Adjustable Output Remote On/Off	1 in	2 in	0.4 in	9 V	18 V	-40 °C	85 °C	1	1.6 kV	CB cURus	90 %	Through Hole	ITE (Commercial)	6-DIP Module	8 A	Isolated Module	40 W
Traco Power TEN 40-2423E	15 V	Adjustable Output Remote On/Off	1 in	2 in	0.4 in	18 V	36 V	-40 °C	85 °C	2	1.6 kV	CB cURus	91 %	Through Hole	ITE (Commercial)	6-DIP Module	1.333 A	Isolated Module	40 W	-15 V
Traco Power TEN 40-4810WIE	3.3 V	Adjustable Output Remote On/Off	1 in	2 in	0.4 in	18 V	75 V	-40 °C	85 °C	1	1.6 kV	CB cURus	90 %	Through Hole	ITE (Commercial)	6-DIP Module	12.2 A	Isolated Module	40 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

TEN 40-2412WIE | Datasheet
