M2028BB1W03

Obsolete

NKK Switches

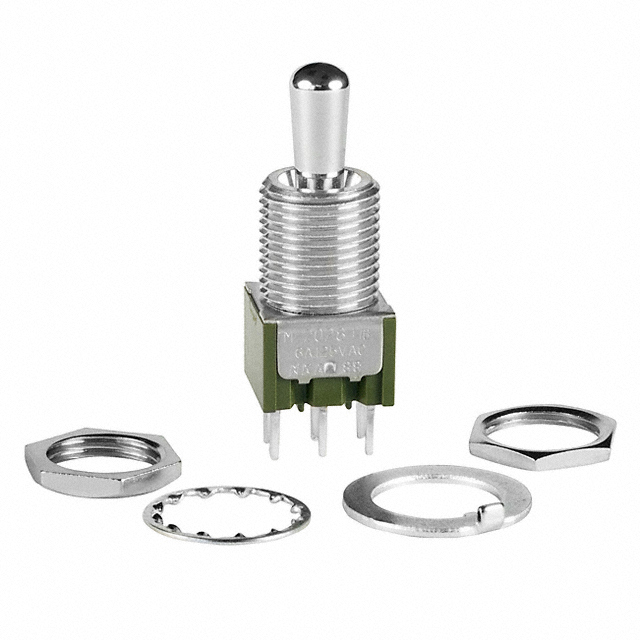

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2028BB1W03

Actuator Length [x]	11.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Voltage Rating - DC	Current Rating (Amps)	Circuit	Features	Actuator Material	Bushing Thread	Bushing Thread	Switch Function	Illumination	Actuator Length [x]	Actuator Type	Electrical Life	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]
NKK Switches M2028BB1W01	30 V	3 A 6 A	DPDT	Epoxy Sealed Terminals	Brass Chrome Plated	M12	1 x 1	Mom-Off-Mom	Non-Illuminated	11.5 mm	Standard Round	25000 Steps	12.5 mm	Solder Lug	125 V	-30 ░C	85 °C
NKK Switches M2028BB1W03-RA	30 V	3 A 6 A	DPDT	Black Cap	Brass Chrome Plated	M12	1 x 1	Mom-Off-Mom	Non-Illuminated	12.3 mm	Standard Round with Cap	25000 Steps	12.5 mm	PC Pin	125 V	-30 ░C	85 °C
NKK Switches M2028BB1W03	30 V	3 A 6 A	DPDT	Epoxy Sealed Terminals	Brass Chrome Plated	M12	1 x 1	Mom-Off-Mom	Non-Illuminated	11.5 mm	Standard Round	25000 Steps	12.5 mm	PC Pin	125 V	-30 ░C	85 °C
