245602640000829H+

Obsolete

KYOCERA AVX

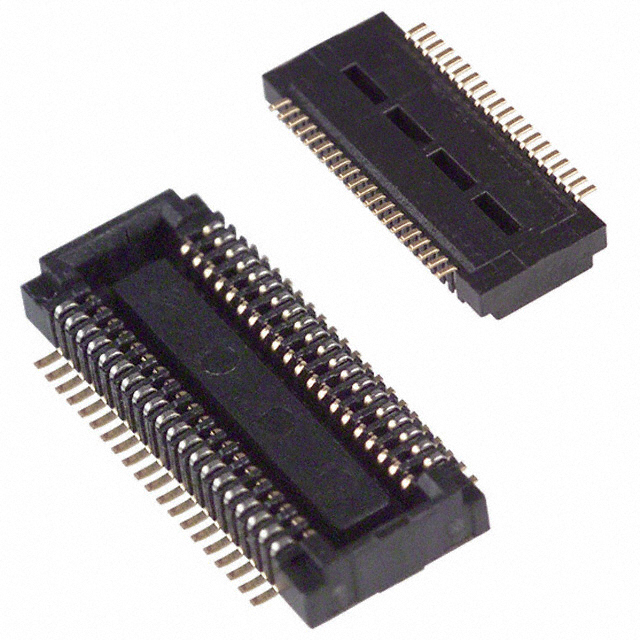

CONN RCPT 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

KYOCERA AVX

CONN RCPT 40POS SMD GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	245602640000829H+	245602 Series

	-	-
Connector Type	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts
Contact Finish	Gold	Gold
Contact Finish Thickness	4 Áin	4 Áin
Contact Finish Thickness	0.1 Ám	0.1 Ám
Height Above Board [z]	0.057 in	0.057 in
Height Above Board [z]	1.45 mm	1.45 mm
Mated Stacking Heights	1.5 mm	1.5 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	40	24 - 70
Number of Positions	-	16
Number of Rows	2	2
Pitch [x]	0.016 in	0.016 in
Pitch [x]	0.4 mm	0.4 mm

CONN RCPT 40POS SMD GOLD

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions	Contact Finish	Mated Stacking Heights	Connector Type	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Number of Positions
KYOCERA AVX 245602640000829H+	Surface Mount	4 Áin	0.1 Ám	2	40	Gold	1.5 mm	Center Strip Contacts, Receptacle	0.057 in	1.45 mm	0.016 in	0.4 mm
KYOCERA AVX 245602020000829H+
KYOCERA AVX 245602624000829H+	Surface Mount			2	24		1.5 mm	Center Strip Contacts, Receptacle	0.057 in	1.45 mm	0.016 in	0.4 mm
KYOCERA AVX 245602680000829H+
KYOCERA AVX 245602634000829H+
KYOCERA AVX 245602616000829H+	Surface Mount			2			1.5 mm	Center Strip Contacts, Receptacle	0.057 in	1.45 mm	0.016 in	0.4 mm	16
KYOCERA AVX 245602630000829H+	Surface Mount	4 Áin	0.1 Ám	2	30	Gold	1.5 mm	Center Strip Contacts, Receptacle	0.057 in	1.45 mm	0.016 in	0.4 mm
KYOCERA AVX 245602626000829H+
KYOCERA AVX 245602644000829H+
KYOCERA AVX 245602654000829H+
