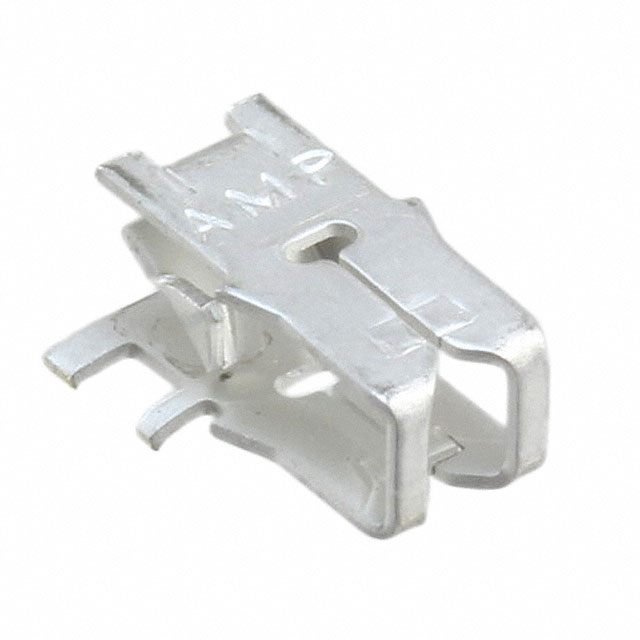

1217234-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 28-31AWG IDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217234-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 28-31AWG IDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217234-1 |
|---|---|
| Features | Locking |
| Size | 2 Liter |
| Style | 300 |
| Terminal Type | Poke-In Terminal |
| Termination | IDC |
| Wire Gauge [Max] | 31 AWG |
| Wire Gauge [Min] | 27.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.16 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
| Tape & Reel (TR) | 12000 | $ 0.08 | ||
| 24000 | $ 0.08 | |||
| 36000 | $ 0.07 | |||
| 60000 | $ 0.07 | |||
| 84000 | $ 0.07 | |||
| 120000 | $ 0.07 | |||
1217234 Series
CONN MAG TERM 28-31AWG IDC
| Part | Style | Size | Features | Termination | Terminal Type | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217234-1 | 300 | 2 Liter | Locking | IDC | Poke-In Terminal | 31 AWG | 27.5 AWG |
Description
General part information
1217234 Series
Terminal Magnetic Connector 300 28-31 AWG IDC
