L17DVZK15KFMT
ActiveAmphenol ICC (Commercial Products)
D SUB BACKSHELL
Deep-Dive with AI
Search across all available documentation for this part.
L17DVZK15KFMT
ActiveAmphenol ICC (Commercial Products)
D SUB BACKSHELL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L17DVZK15KFMT |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 45 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | 15pos, HD26pos |
| Compatible Shell Size | A |
| Features | Mating Screws |
| Hardware | Assembly Hardware, Grommets |
| Material | Zinc Die Cast |
| Number of Positions | 15 |
| Plating | Nickel |
| Primary Material | Metal |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 8.15 | |
| 10 | $ 7.33 | |||
| 25 | $ 6.91 | |||
| 50 | $ 6.73 | |||
| 100 | $ 6.56 | |||
| 250 | $ 5.85 | |||
| 500 | $ 5.49 | |||
| 1000 | $ 4.85 | |||
Description
General part information
L17DVZK15 Series

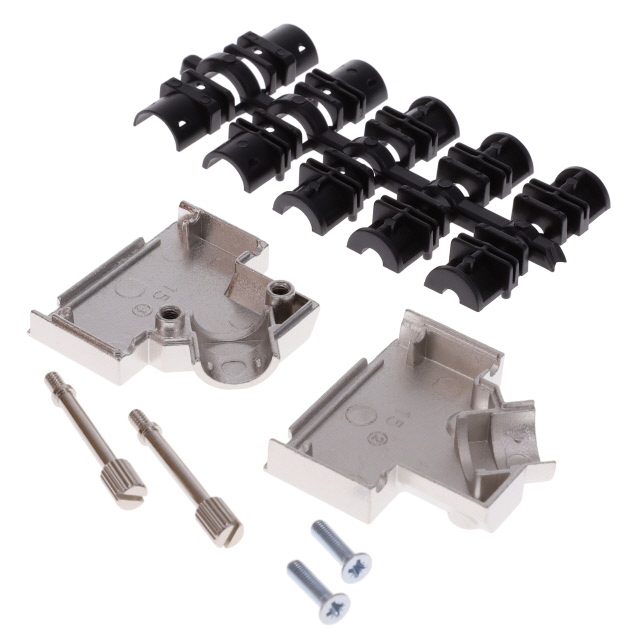

15 Position Two Piece Backshell Connector Silver 45° Unshielded
Documents
Technical documentation and resources
No documents available
