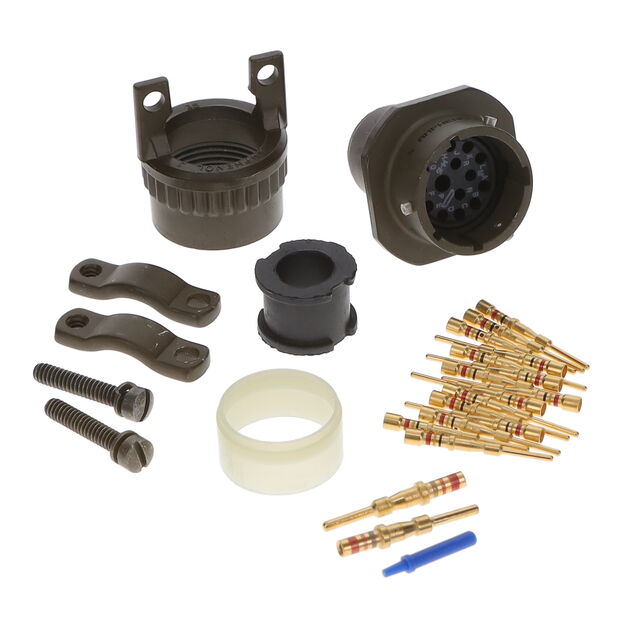

MS3121F14-15P

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3121F14-15P

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MS3121F14-15P	MS3121F14 Series

	-	-
Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Backshell Material, Plating	-	Aluminum, Olive Drab Chromate over Cadmium
Color	Olive Drab	Olive Drab
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A, 7.5 A	7.5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Grade	Military	Military
Ingress Protection	Environment Resistant	Environment Resistant
Insert Material	Neoprene	Neoprene
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	15	12 - 19
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N, W
Primary Material	Metal	Metal
Qualification	MIL-DTL-26482 Series I	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium	Olive Drab Chromate over Cadmium
Shell Material	Aluminum	Aluminum
Shell Size - Insert	-	19
Shell Size - Insert	-	14
Shell Size - Insert	-	14-5, 14-12
Shell Size - Insert [Max]	15	15 - 18
Shell Size - Insert [Min]	14	14
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 VAC	600 - 1000 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 161.48
		10	$ 149.64
		25	$ 144.26
		50	$ 143.18

MS3121F14 Series

CONN RCPT MALE 19POS GOLD CRIMP

Part	Primary Material	Qualification	Mounting Type	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Termination	Contact Finish - Mating	Number of Positions	Color	Backshell Material, Plating	Shielding	Ingress Protection	Contact Material	Grade	Fastening Type	Orientation	Features	Shell Material	Insert Material	Applications	Current Rating (Amps)	Shell Size - Insert	Voltage Rating	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Industrial Operations MS3121F14-19P	Metal	MIL-DTL-26482 Series I	Free Hanging (In-Line)	19	14	Male Pins, Receptacle	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Crimp	Gold	19	Olive Drab	Aluminum, Olive Drab Chromate over Cadmium	Unshielded	Environment Resistant	Copper Alloy	Military	Bayonet Lock	N	Backshell, Cable Clamp	Aluminum	Neoprene	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Amphenol Industrial Operations MS3121F14-18P(LC)
Amphenol Industrial Operations MS3121F14-5S	Metal	MIL-DTL-26482 Series I	Free Hanging (In-Line)			Receptacle, Female Sockets	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Crimp	Gold		Olive Drab		Unshielded	Environment Resistant	Copper Alloy	Military	Bayonet Lock	N	Backshell, Cable Clamp	Aluminum	Neoprene	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military	13 A	14-5	1000 VAC
Amphenol Industrial Operations MS3121F14-15P	Metal	MIL-DTL-26482 Series I	Free Hanging (In-Line)			Male Pins, Receptacle	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Crimp	Gold	15	Olive Drab		Unshielded	Environment Resistant	Copper Alloy	Military	Bayonet Lock	N	Backshell, Cable Clamp	Aluminum	Neoprene	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military	7.5 A, 13 A		600 VAC	14	15
Amphenol Industrial Operations MS3121F14-19S	Metal	MIL-DTL-26482 Series I	Free Hanging (In-Line)	19	14	Receptacle, Female Sockets	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Crimp	Gold	19	Olive Drab	Aluminum, Olive Drab Chromate over Cadmium	Unshielded	Environment Resistant	Copper Alloy	Military	Bayonet Lock	N	Backshell, Cable Clamp	Aluminum	Neoprene	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Amphenol Industrial Operations MS3121F14-15S(LC)
Amphenol Industrial Operations MS3121F14-18P	Metal	MIL-DTL-26482 Series I	Free Hanging (In-Line)			Male Pins, Receptacle	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Crimp	Gold	18	Olive Drab		Unshielded	Environment Resistant	Copper Alloy	Military	Bayonet Lock	N	Backshell, Cable Clamp	Aluminum	Neoprene	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military	7.5 A		600 VAC	14	18
Amphenol Industrial Operations MS3121F14-18S
Amphenol Industrial Operations MS3121F14-12P(LC)
Amphenol Industrial Operations MS3121F14-5P	Metal	MIL-DTL-26482 Series I	Free Hanging (In-Line)			Male Pins, Receptacle	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Crimp	Gold		Olive Drab		Unshielded	Environment Resistant	Copper Alloy	Military	Bayonet Lock	N	Backshell, Cable Clamp	Aluminum	Neoprene	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military	13 A	14-5	1000 VAC

Description

General part information

MS3121F14 Series

15 Position Circular Connector Receptacle, Male Pins Crimp
