Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-IPE014V1 |
|---|---|
| Embedded | False |
| Function | Energy/Power Meter |
| Primary Attributes | 2 Phase, 3 Phase, 1 Phase |
| Secondary Attributes | On-Board LEDs |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | STPMS2L, STPMC1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 71.25 | |
Description
General part information
STEVAL-IPE014V1 Series

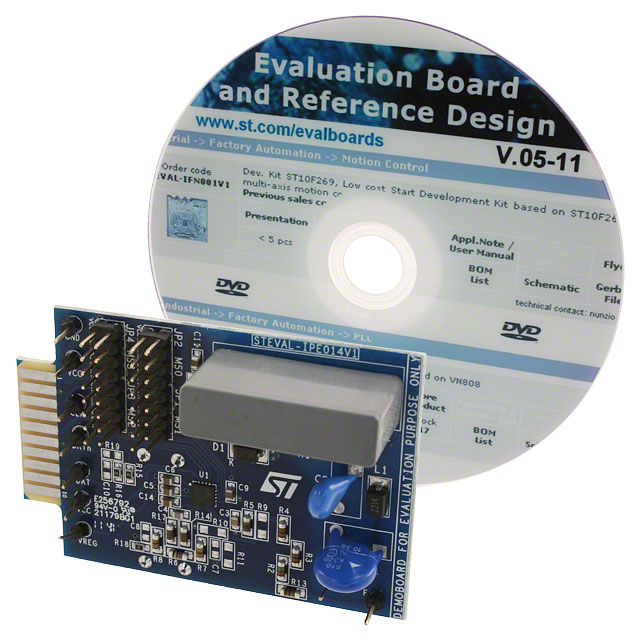

The STEVAL-IPE014V1 is a daughterboard based on the STPMS2 "smart sensor" device, and is designed for use with the STPMC1-based STEVAL-IPE010V1 motherboard. Together the system provides a complete, ready-to-use energy meter application. When connected to the motherboard, each STEVAL-IPE014V1 daughterboard serves a single phase, converting and multiplexing the voltage and current information and sending the stream to the STPMC1 energy calculator IC.
