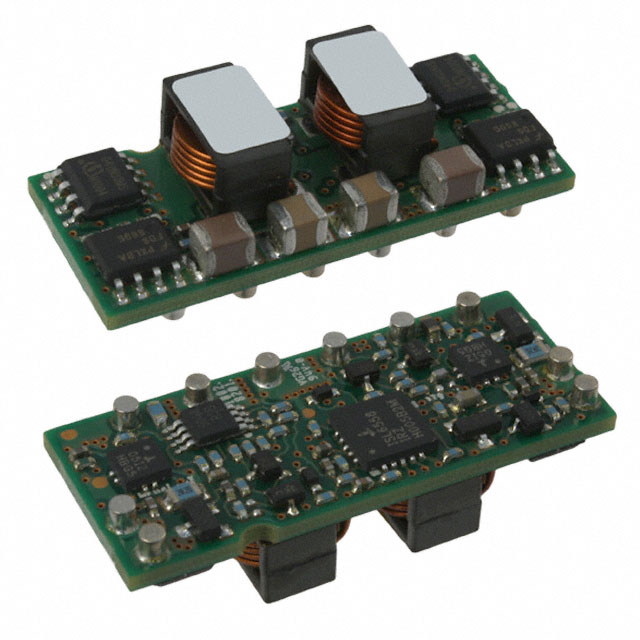

ATS030A0X3-SRPHZ

Active

OmniOn Power™

DC DC CONVERTER 0.8-2.75V 165W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 0.8-2.75V 165W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 0.8-2.75V 165W

Part	Control Features	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Efficiency	Voltage - Input (Min) [Min]	Type	Features	Number of Outputs	Applications
OmniOn Power™ ATS030A0X3-SRPHZ	Active Low, Enable	14 V	Surface Mount	85 °C	-40 °C	30 A	13.5 mm	0.53 "	0.36 "	33 mm	1.3 "	9.1 mm	5-SMD Module	0.8 V	2.75 V	93 %	6 V	Non-Isolated PoL Module	OCP, OTP, Remote On/Off, UVLO	1	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 26.26
	Digi-Reel®	1	$ 26.26
	Tape & Reel (TR)	200	$ 22.22

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.75V 30A 6V - 14V Input

Technical documentation and resources

No documents available
