NJU7098AF1-TE1
ActiveNisshinbo Micro Devices Inc
IC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJU7098AF1-TE1
ActiveNisshinbo Micro Devices Inc
IC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJU7098AF1-TE1 |
|---|---|
| Amplifier Type | CMOS |
| Current - Input Bias | 40 pA |
| Current - Output / Channel | 60 mA |
| Current - Supply | 700 µA |
| Gain Bandwidth Product | 5 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Rail-to-Rail |

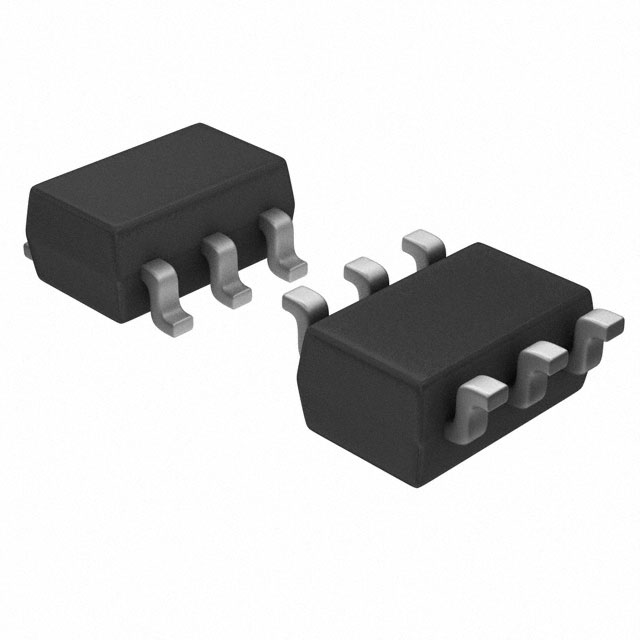

| Package / Case | SOT-23-6 |
| Slew Rate | 14 V/µs |
| Supplier Device Package | SOT-23-6-1 |
| Voltage - Input Offset | 3 µV |
| Voltage - Supply Span (Max) [Max] | 10 V |
| Voltage - Supply Span (Min) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 1.77 | |
| Cut Tape (CT) | 1 | $ 3.53 | ||
| 10 | $ 3.17 | |||
| 25 | $ 3.00 | |||
| 100 | $ 2.60 | |||
| 250 | $ 2.47 | |||
| 500 | $ 2.21 | |||
| 1000 | $ 1.87 | |||
| Digi-Reel® | 1 | $ 3.53 | ||
| 10 | $ 3.17 | |||
| 25 | $ 3.00 | |||
| 100 | $ 2.60 | |||
| 250 | $ 2.47 | |||
| 500 | $ 2.21 | |||
| 1000 | $ 1.87 | |||
| Tape & Reel (TR) | 3000 | $ 1.65 | ||
Description
General part information
NJU7098 Series
IC
Documents
Technical documentation and resources
